Vaporesso GTX Replacement Coils

Vaporesso GTX Coils

GTX coils are the push-fit coil platform used across most of the refillable Vaporesso kits that take a separate coil. GTX comes in seven resistances from 0.15 ohm to 1.2 ohm, three of which also come as dual mesh, so Vaporesso list ten different coils in all, each coming in packs of five.

The coil pushes into the base of the pod or tank and pulls straight out, so a change takes seconds and there is nothing to screw. Which resistance you want depends on the kit and the draw.

Key Features

• Seven resistances: 0.15, 0.2, 0.3, 0.4, 0.6, 0.8 and 1.2 ohm coils

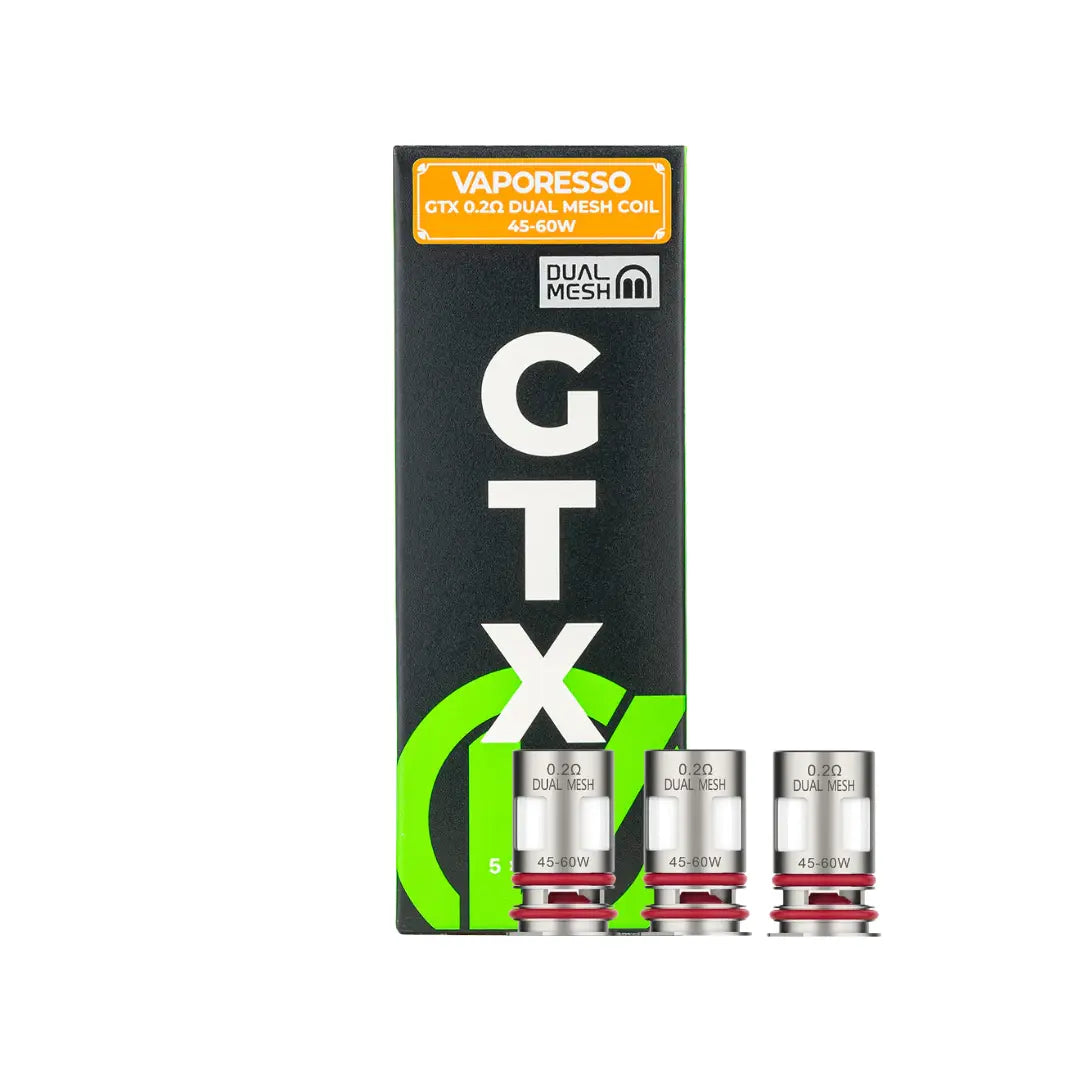

• Three dual mesh options: 0.15, 0.2 and 0.3 ohm, which Vaporesso build with a dual-layer mesh structure
• Vaporesso's dual mesh figures: 25% aroma reproduction and 30% longer lifespan, published without a stated baseline
• Push fit: in and out of the base, no threading
• COREX cotton wick: Vaporesso describe it as microfibre
• Five per pack: every resistance is sold as a five-pack
• Not GTi: GTX and GTi coils are not interchangeable, which Vaporesso state outright

Vaporesso GTX Coil Compatibility

Vaporesso group the current vape kits by the pod or tank the coil goes into, and each one takes part of the range rather than all of it. Coil and vape kit compatibility is outlined below.

Pod or tank	Coils it takes	On these kits
Luxe XR DTL pod	0.15 to 0.6 ohm	Luxe XR, XR Max, XR Max 2, Luxe X2, Luxe X3, Luxe X Pro
Luxe XR MTL pod	0.6 to 1.2 ohm	The same kits
Armour G series DTL pod	0.15 to 0.6 ohm	Armour G, Armour GS
Armour G series MTL pod	0.6 to 1.2 ohm	Armour G, Armour GS
xTank pod	0.15 to 1.2 ohm	GTX One Pro
xTank T tank	0.4 to 1.2 ohm	GTX One Pro, and any 510 mod

The 0.6 ohm is the crossover coil on both the Luxe XR and the Armour G pods: it works in the DTL pod and the MTL pod.

Vaporesso also list the GEN PT 60S and GEN PT 80S on the GTX platform, and a legacy list covering the Luxe 80 and 80S, GTX Go 40 and 80, Swag PX80, Luxe PM40, Target PM80, PM80 SE and PM30, GTX One, GEN Nano and Xiron.

Three of those older kits take only part of the range. The GTX One is listed for 0.6, 0.8 and 1.2 ohm. The Luxe PM40 the same three. The GTX Go 40 is listed for 0.3, 0.4, 0.6 and 0.8 ohm.

Mesh or Dual Mesh Coils

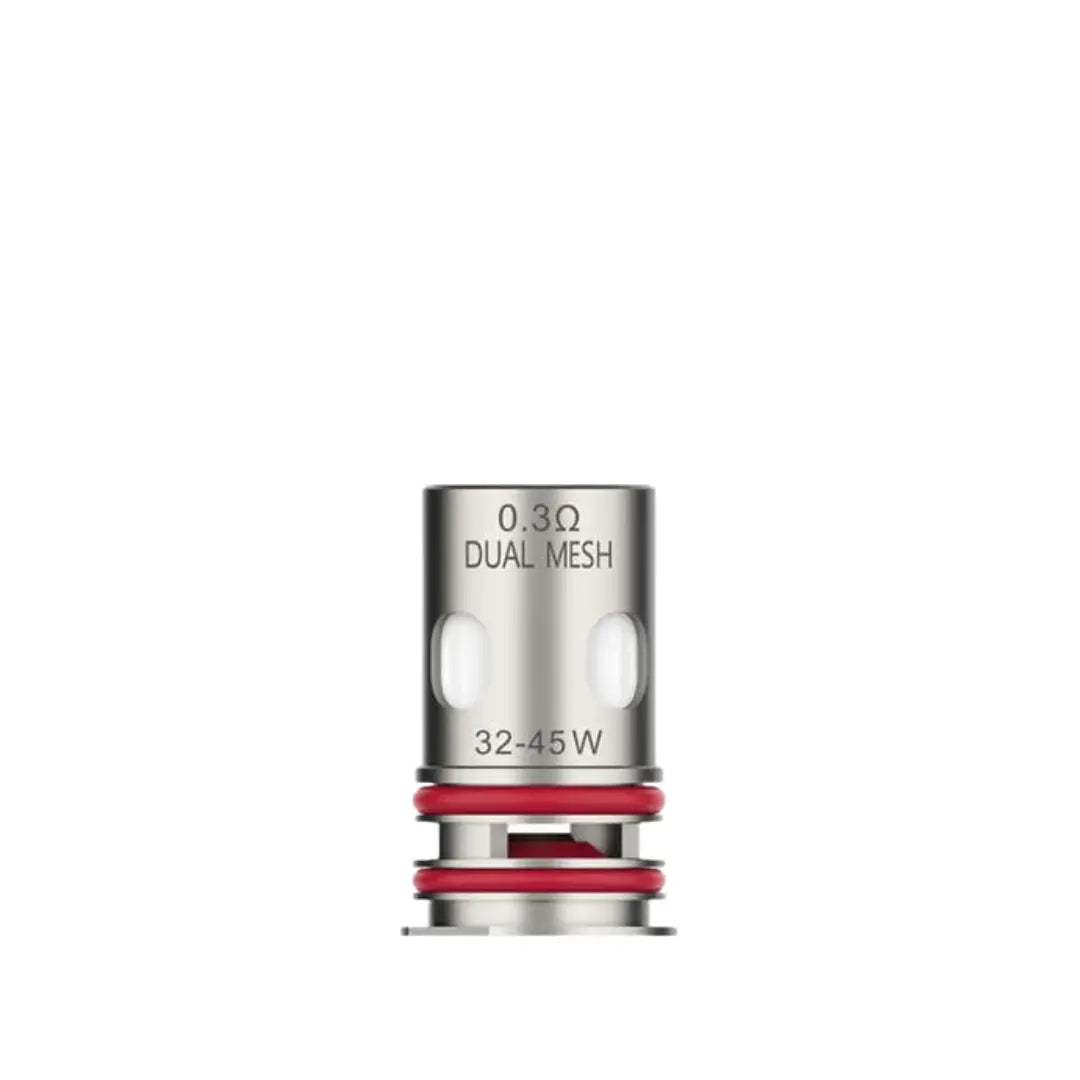

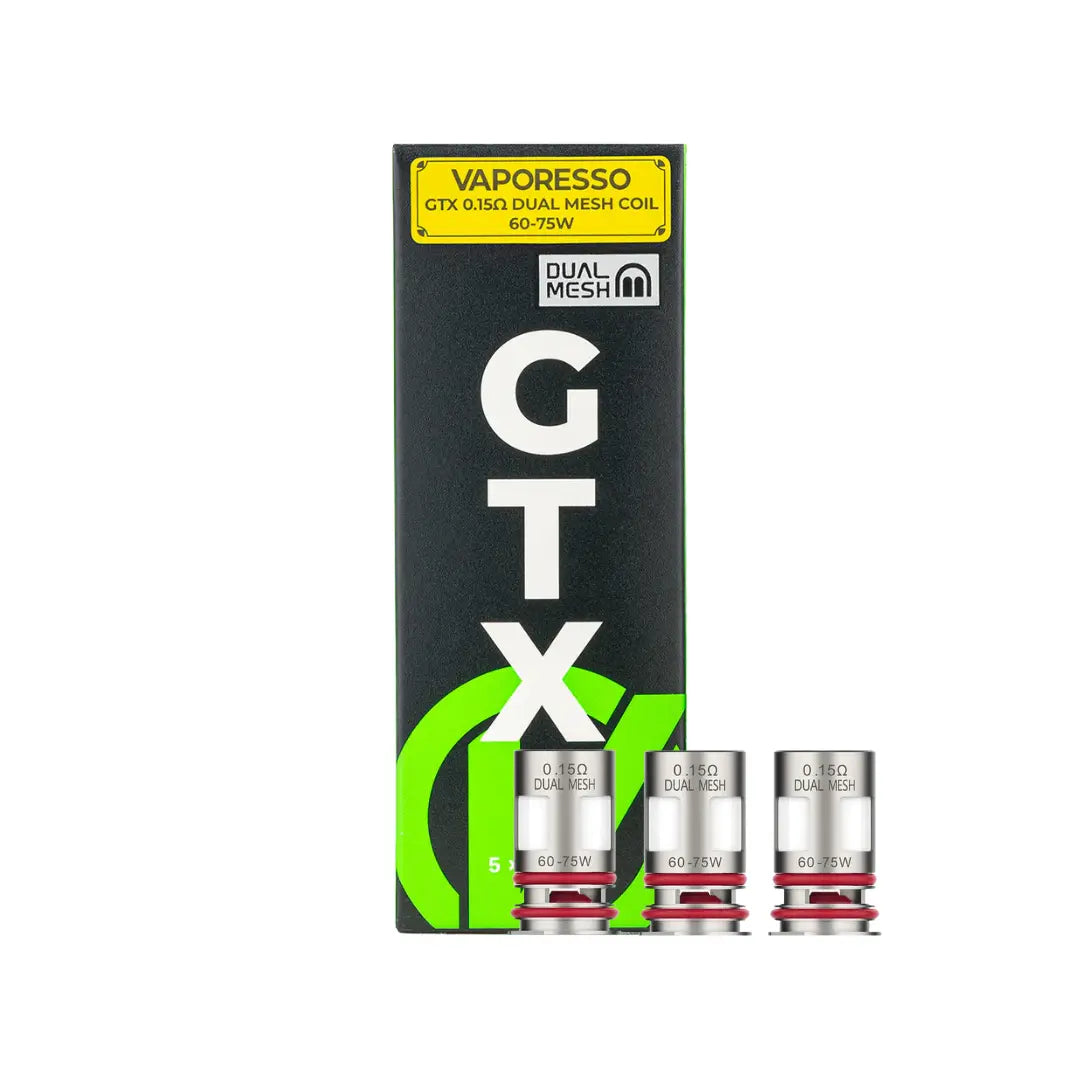

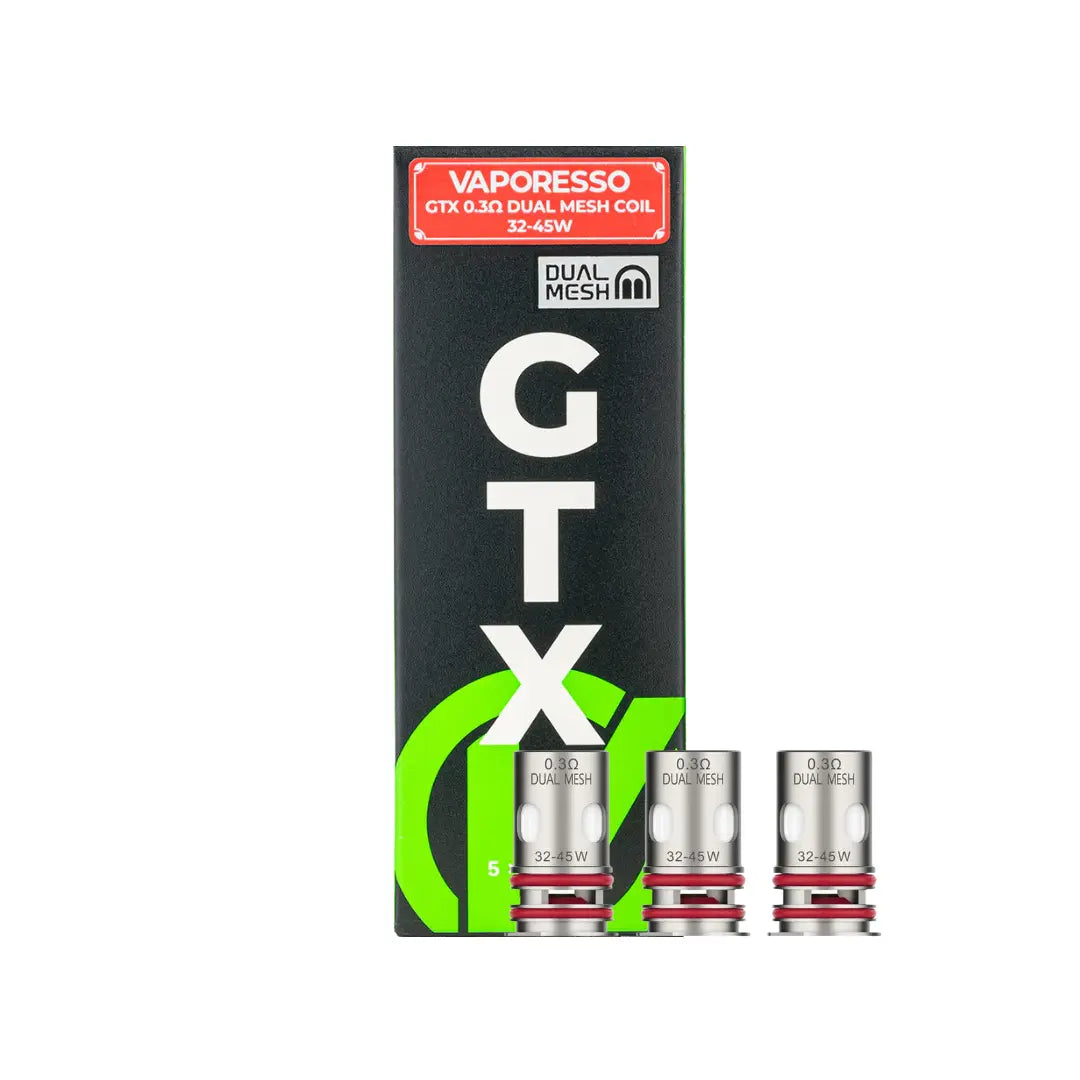

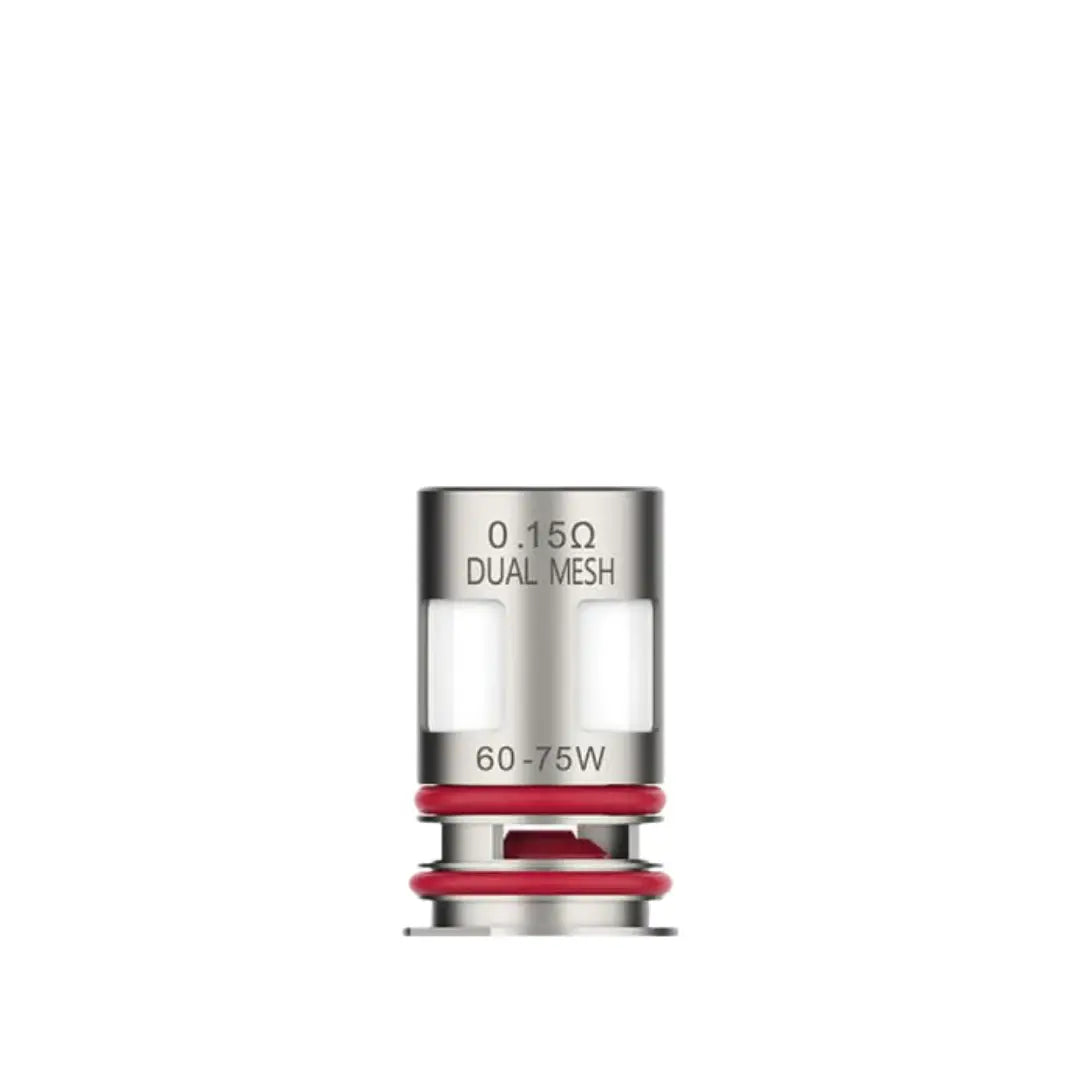

Three GTX coil resistances come in both mesh and dual mesh options. Mesh is a single layer and dual mesh is what Vaporesso call a dual-layer mesh structure, which heats more e-liquid at the same resistance.

Vaporesso publish two figures for the dual mesh, 25% aroma reproduction and 30% longer lifespan. They state no baseline for either, so take them as their numbers rather than as a measured comparison against the single layer.

In practice, the GTX dual mesh coils suit someone chasing flavour and vapour at 0.15, 0.2 or 0.3 ohm on a shortfill e-liquid. The single mesh coils cover the same resistances and the whole range above them.

GTX Coil Wattage Guide

These are Vaporesso's published wattages, both the range and the figure they mark as best for the type of draw, and the vape juice to use with each coil resistance.

Coil	Wattage	Best	Draw	E-liquid

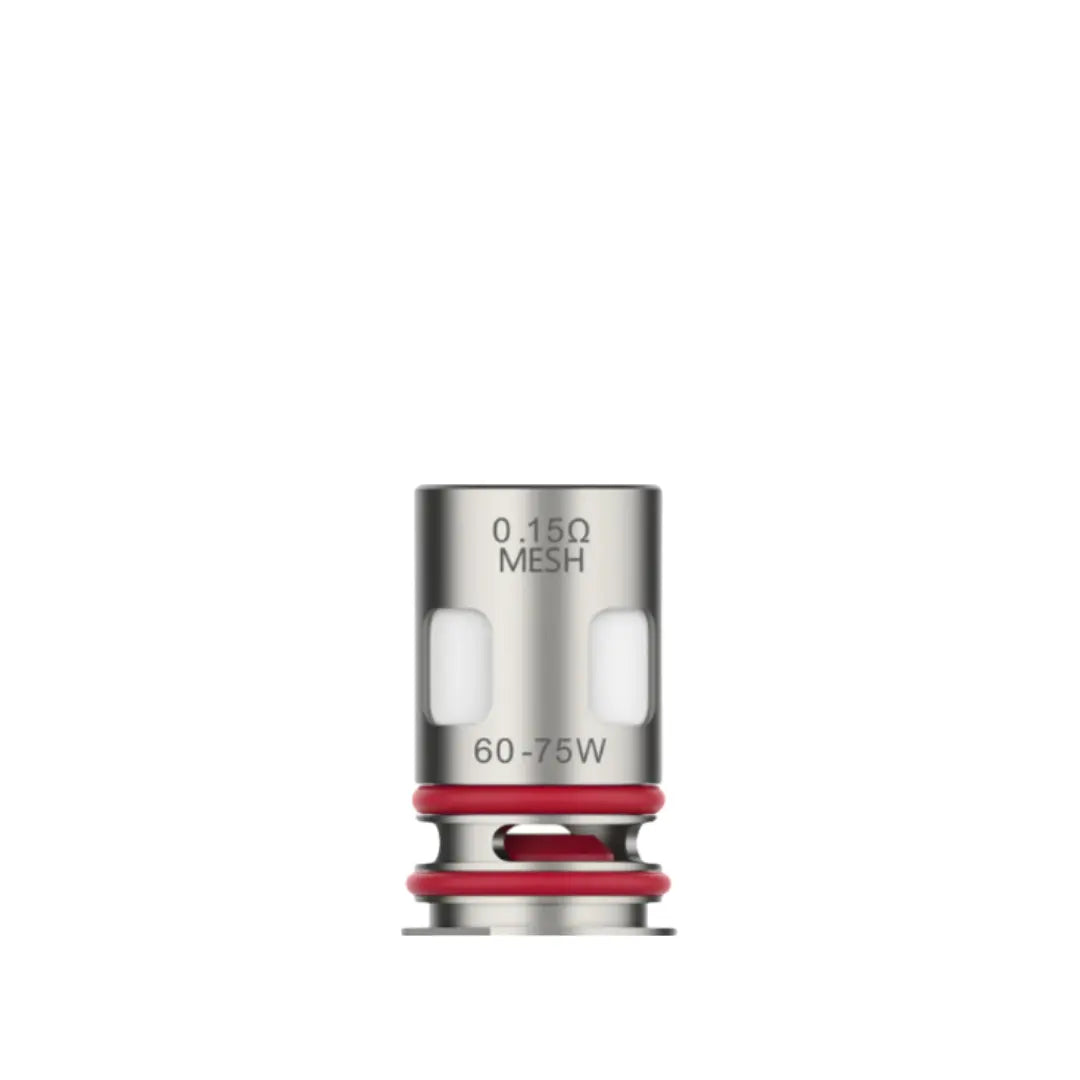

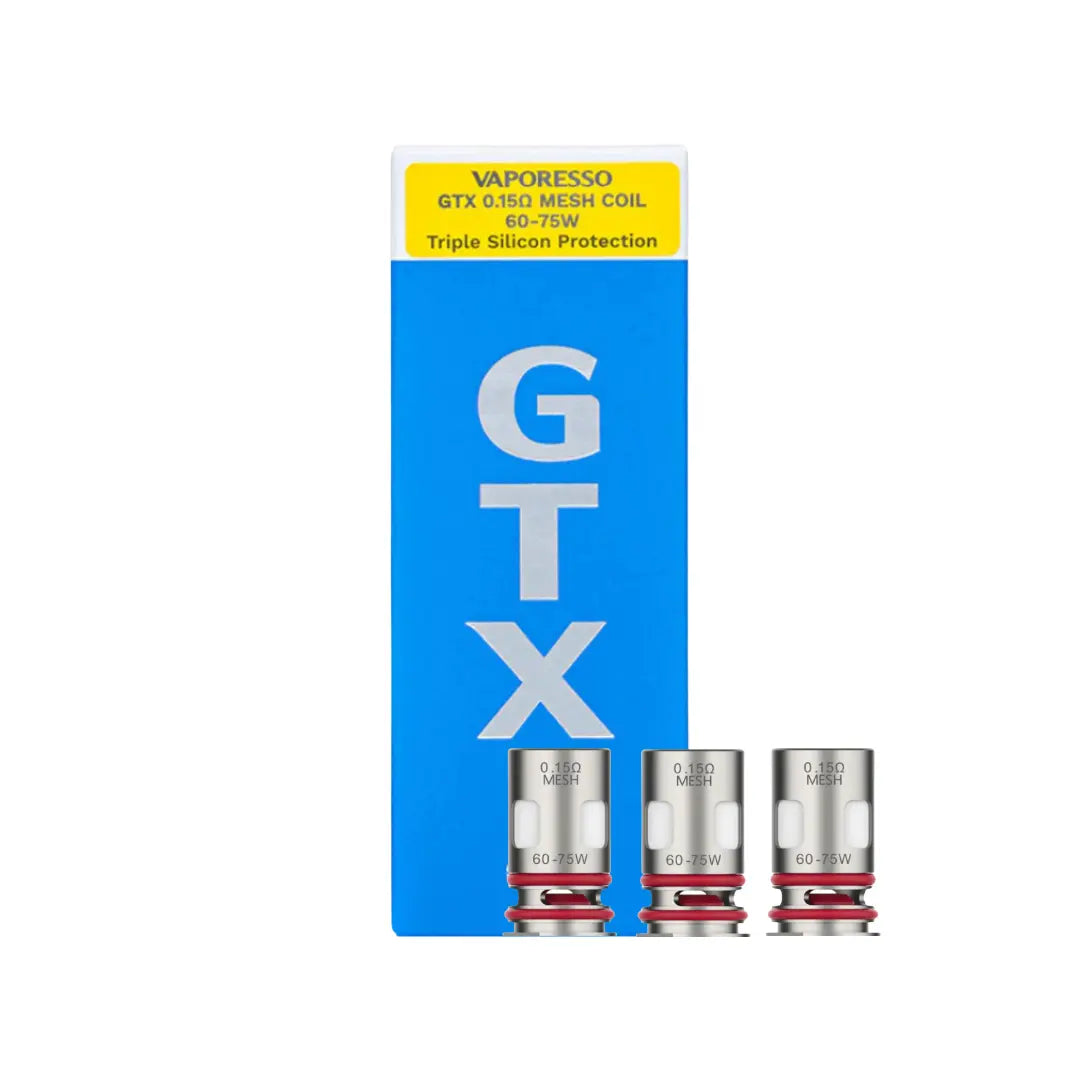

0.15 ohm	60W to 75W	70W	Sub-ohm lung	High VG

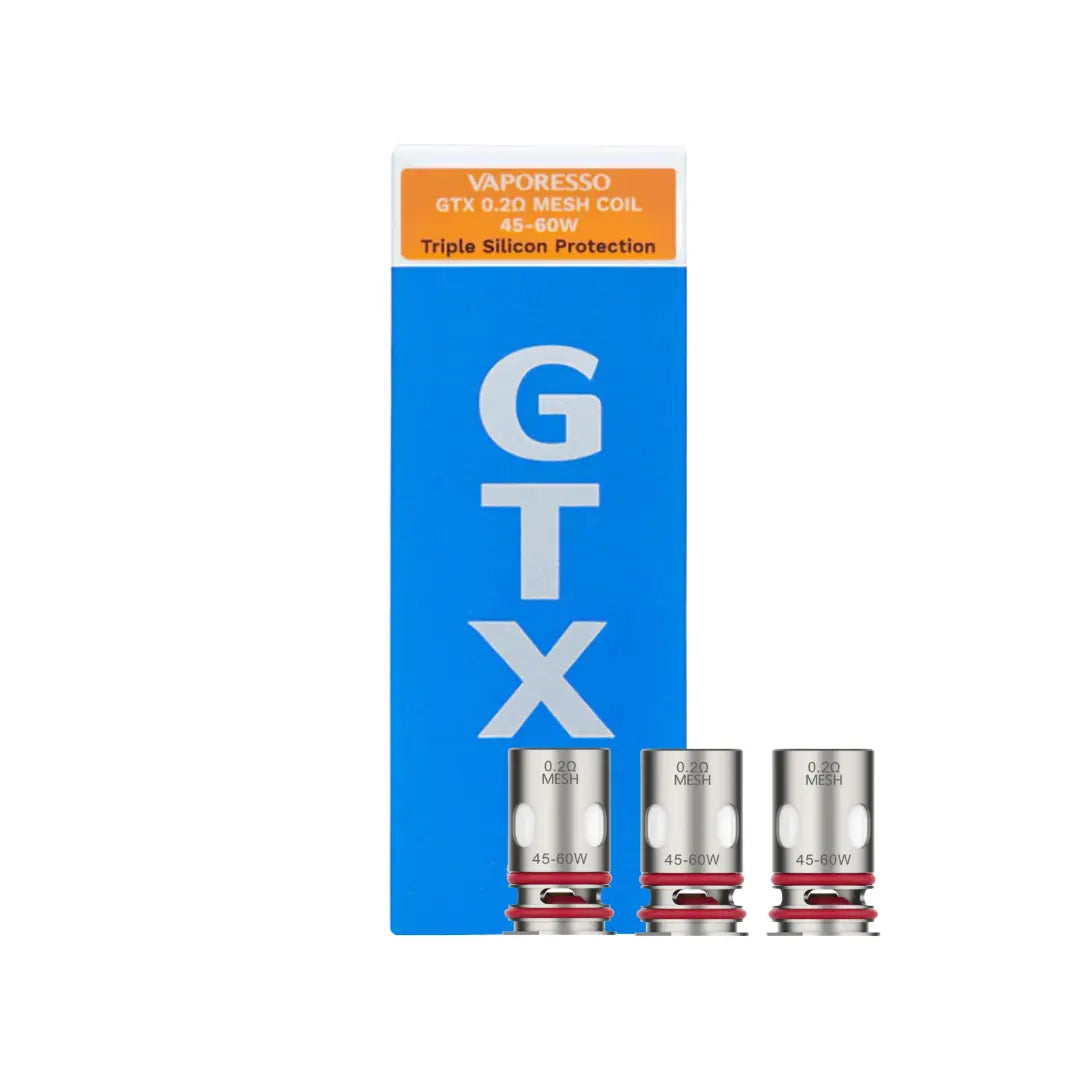

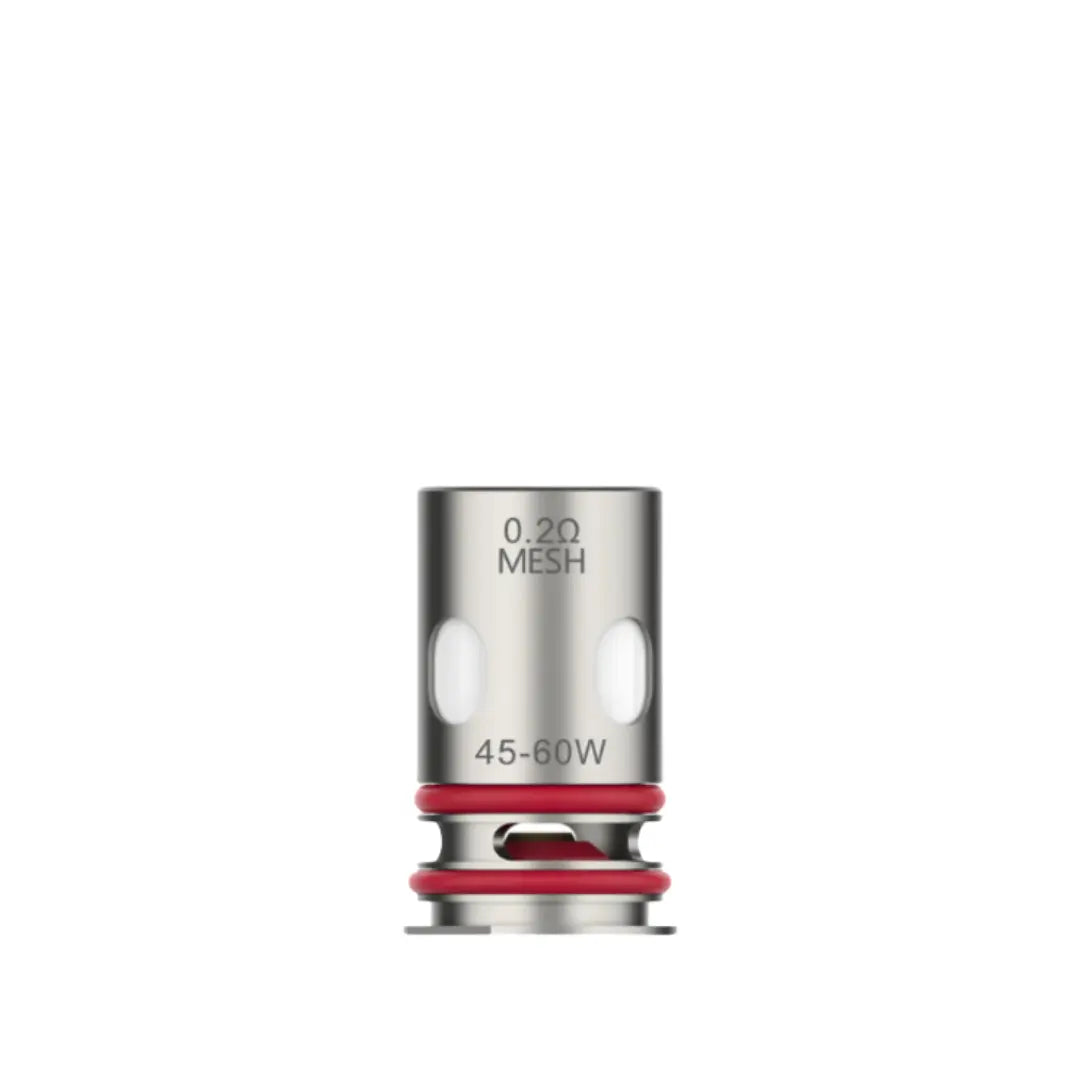

0.2 ohm	45W to 60W	55W	Lung	High VG

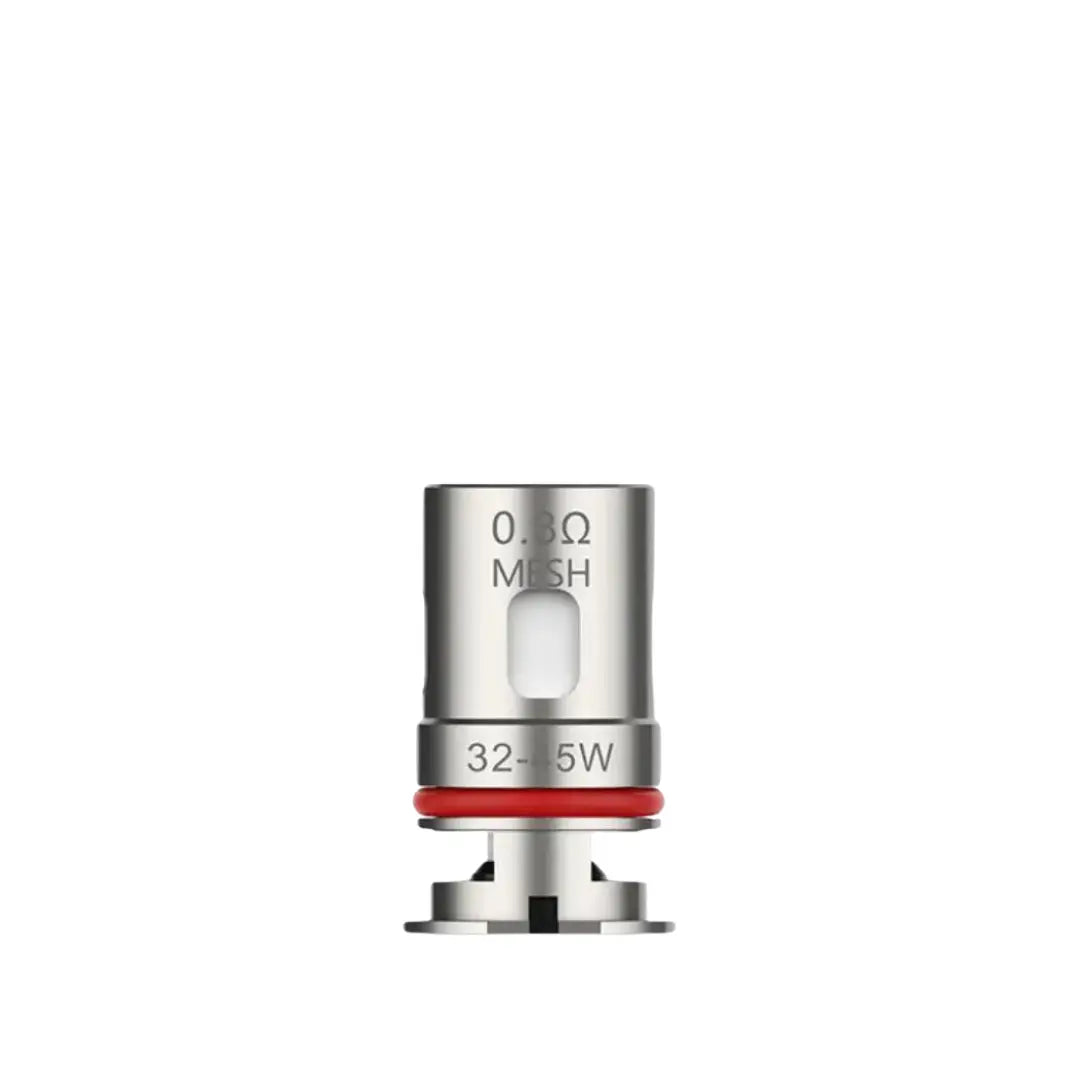

0.3 ohm	32W to 45W	40W	Lung	High VG

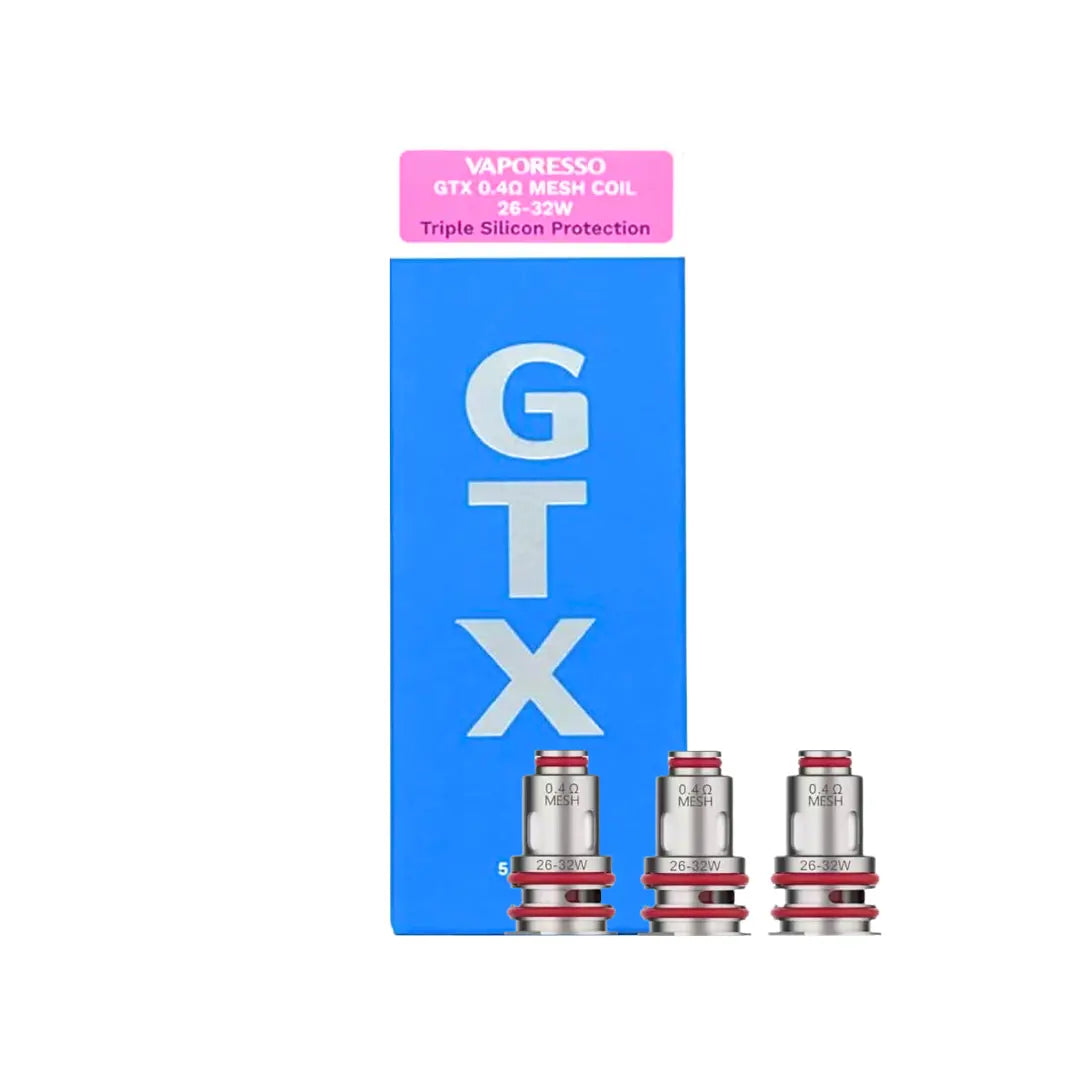

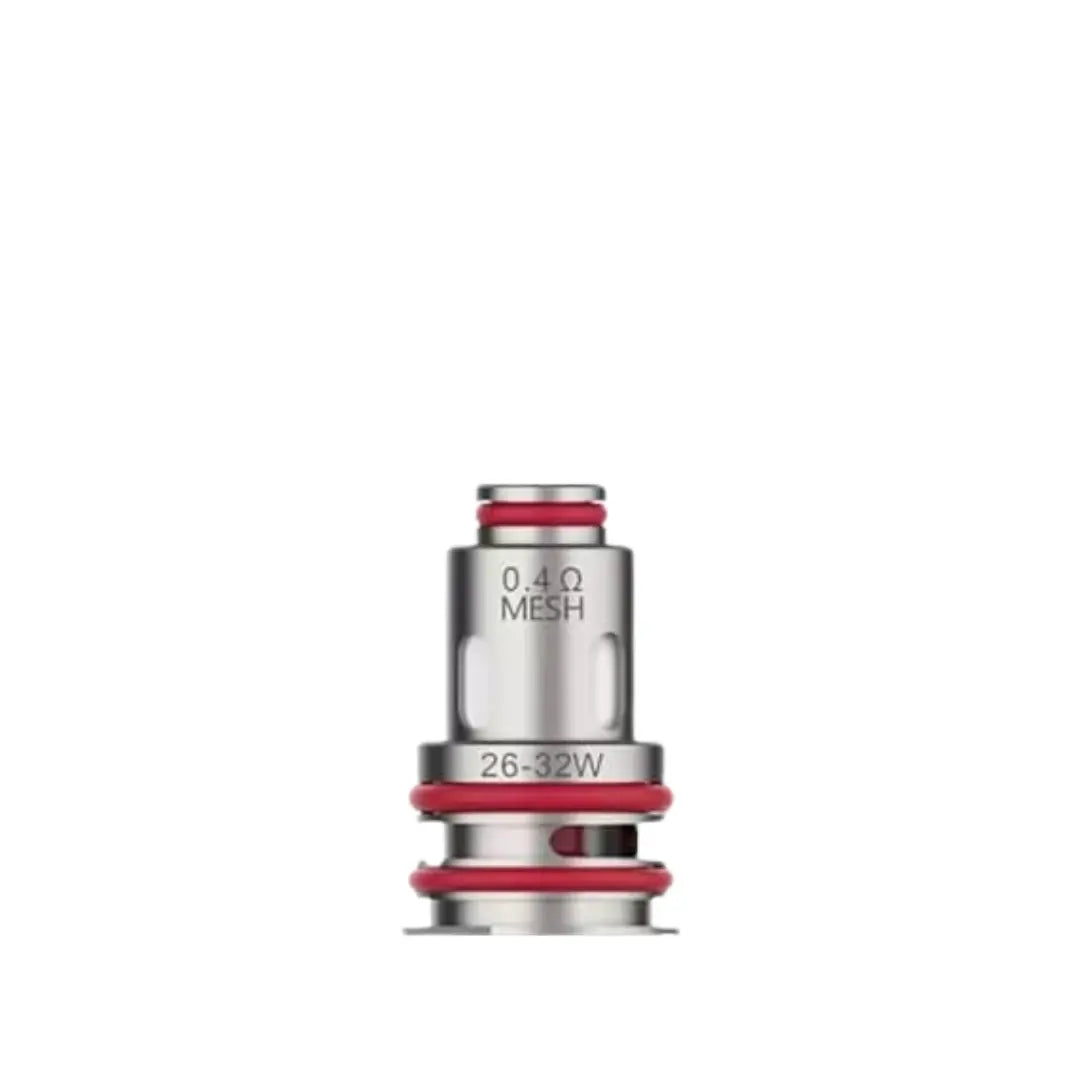

0.4 ohm	26W to 32W	30W	Restricted lung	50/50 or high VG

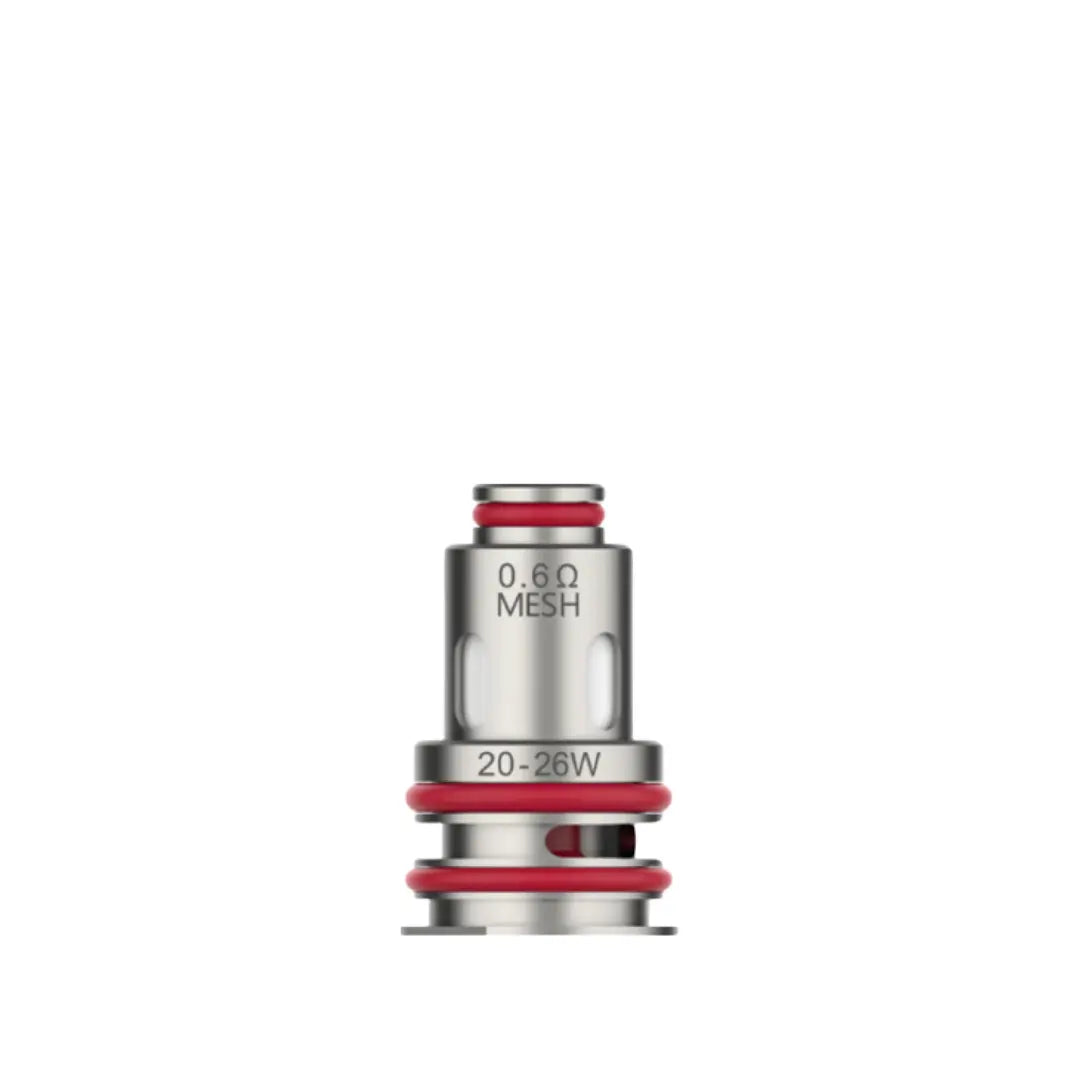

0.6 ohm	20W to 26W	24W	Loose mouth to lung	50/50 or nic salt

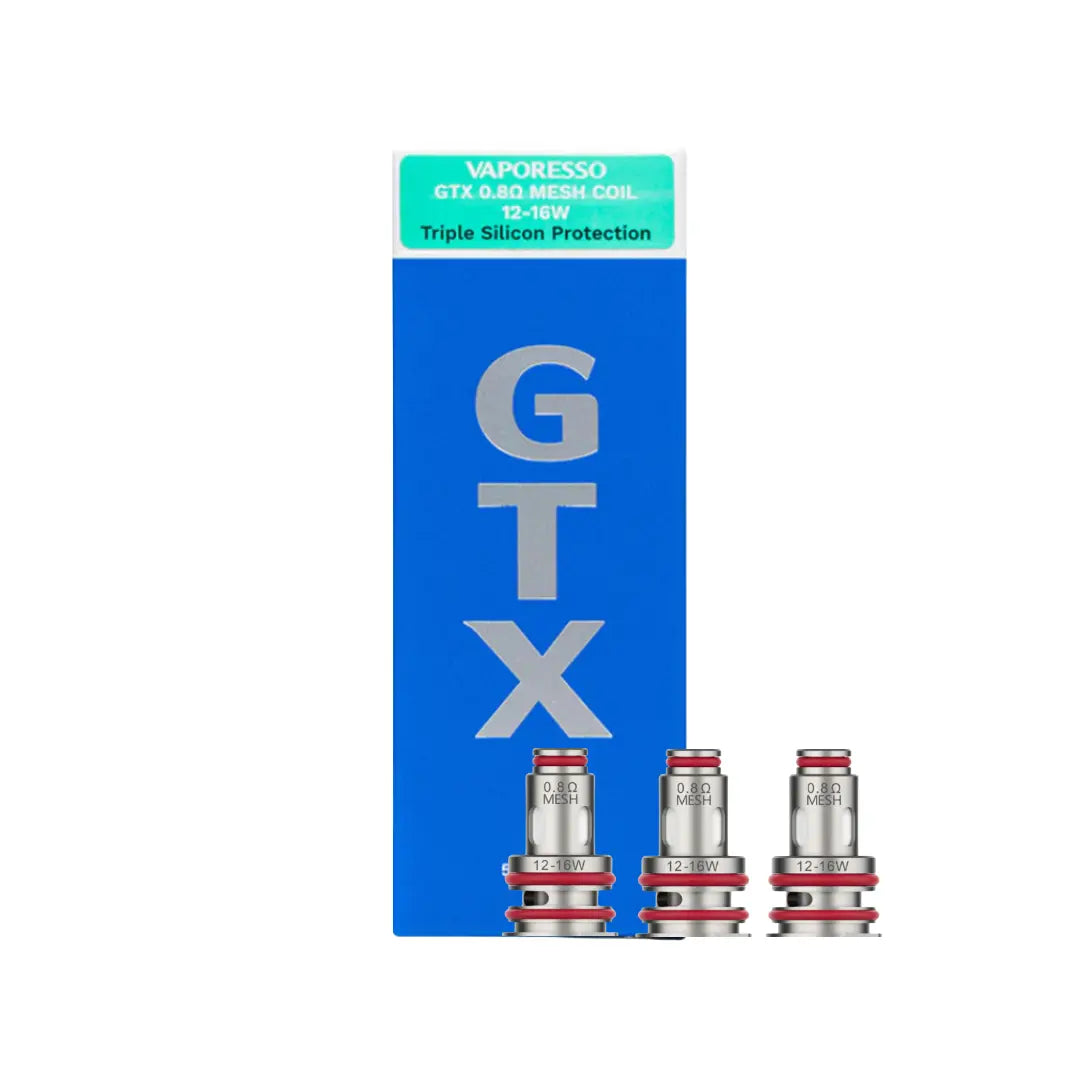

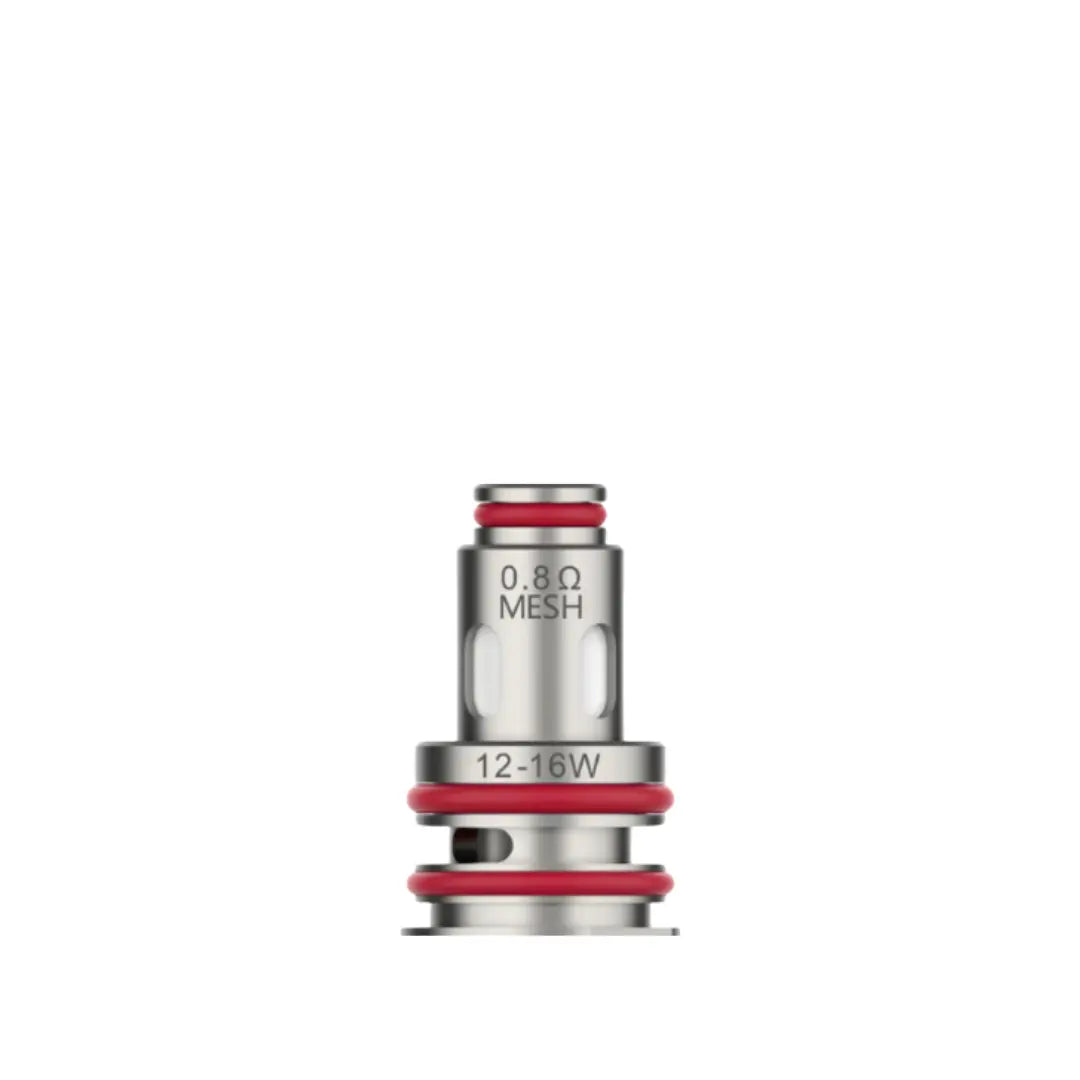

0.8 ohm	12W to 16W	16W	Mouth to lung	Nic salt or 50/50

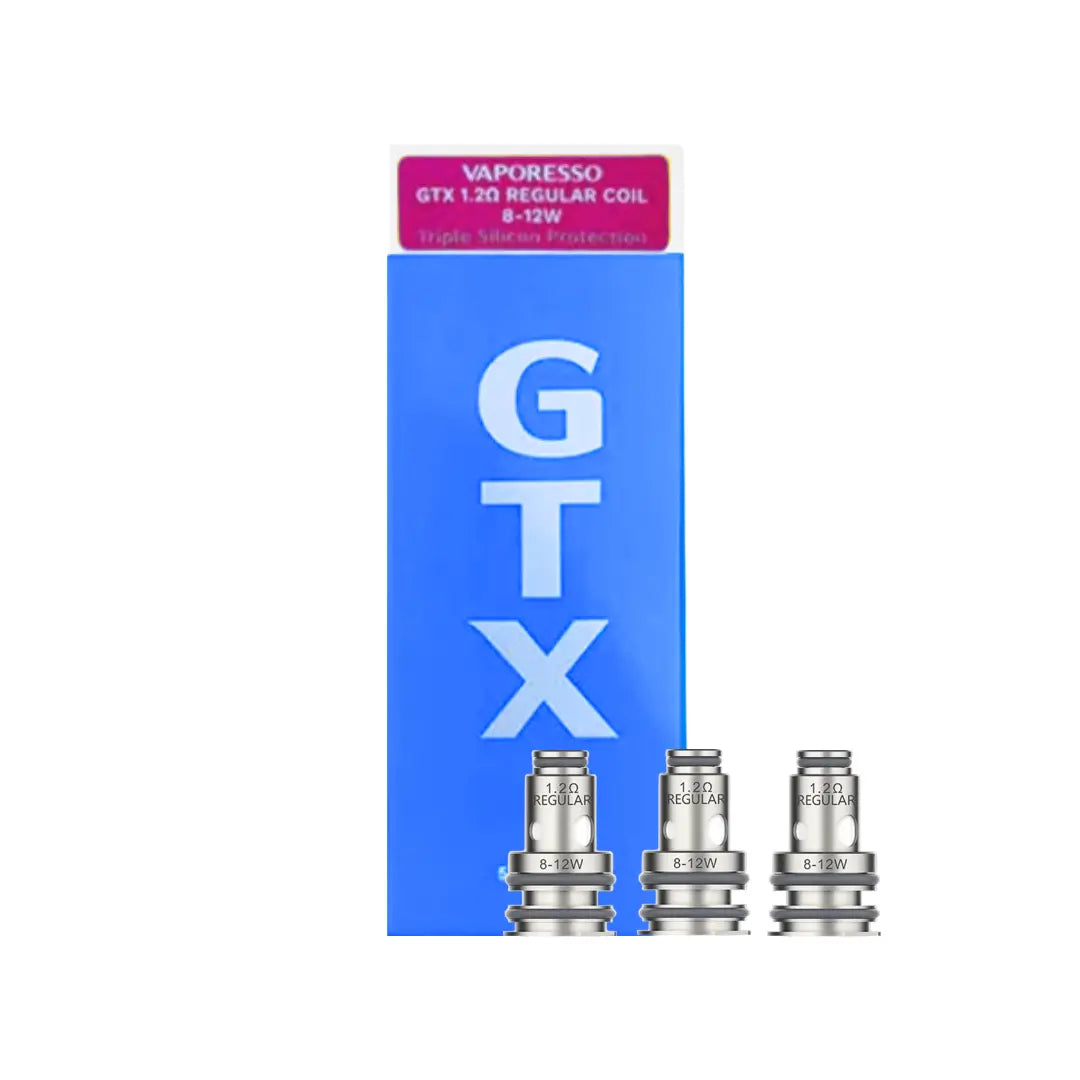

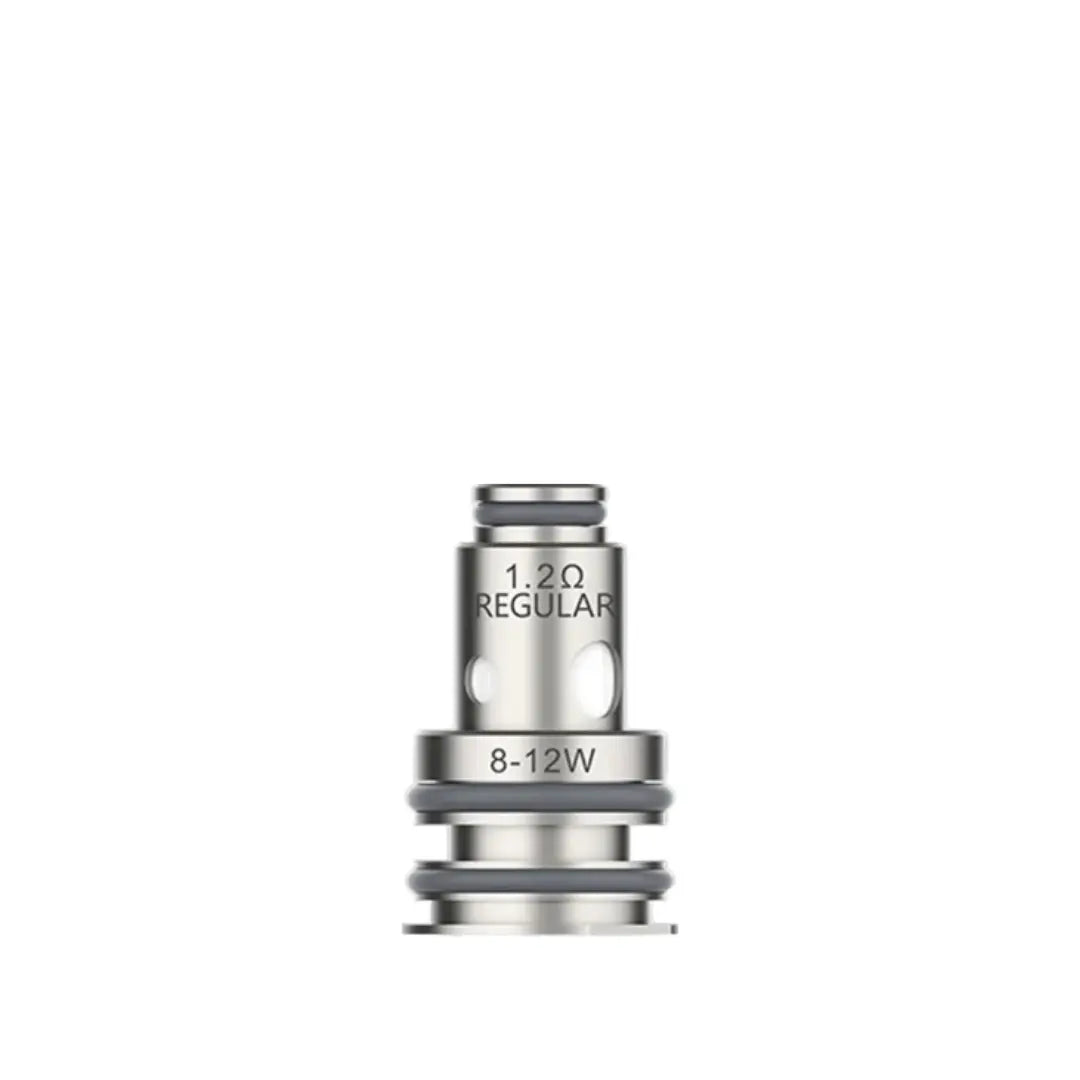

1.2 ohm	8W to 12W	11W	Tight mouth to lung	Nic salt

What Vapes Do GTX Coils Not Fit?

GTX coils do not fit the XROS vape kits. Those take a COREX pod that has the coil sealed inside, so there is no coil to replace: you replace the whole pod.

GTX coils also do not fit the GTi kits. Vaporesso are explicit that the two are not interchangeable in either direction, and that the Armour Ultra, the iTank T and the GEN 200 are GTi only. Those take a GTi coil instead.

If your kit is older than any of those, the GTR coil covers the FORZ tanks.

The GT Mesh coil covers the NRG tanks, and between them those two take care of the rest of the older Vaporesso fittings.

How Long a GTX Coil Lasts

Vaporesso publish this from their own lab testing:

• Five to six refills on the lung coils
• Seven to eight refills on the mouth to lung 0.8 ohm and 1.2 ohm.

The signs your coil needs replacing are a burnt taste on the lung coils and weak vapour on the mouth to lung ones. Sweet dessert flavours shorten coil life because the sugars caramelise on the mesh, so GTX coils need replacing sooner than if you're a fruit or menthol fan.

Fitting a GTX Coil

1. Take the pod or tank off
2. Pull the old coil out of the base
3. Push the new one in until it seats
4. Put the pod or tank back.

Nothing threads and no tool is needed.

Fill it, then leave it standing for a few minutes before the first draw so the cotton in the coil soaks, and take two or three short puffs before a full one. A dry first pull is the most common reason a new coil tastes burnt.

Vaporesso GTX Coil Specifications

Spec	Detail
Brand	Vaporesso
Platform	GTX
Resistances	0.15, 0.2, 0.3, 0.4, 0.6, 0.8 and 1.2 ohm
Dual mesh	0.15, 0.2 and 0.3 ohm
Wattage	8W to 75W, depending on the coil
Wick	COREX cotton, which Vaporesso describe as microfibre
Fitting	Push fit
Coil life	Five to six refills on lung coils, seven to eight on mouth to lung, Vaporesso's own figures
Pack size	Five coils
Not compatible with	XROS COREX pods and any GTi kit

What Is in the Pack

• 5 x Vaporesso GTX coils in the resistance you select
