Tube Mech Mods and Hybrid Designs
The tube mod is the most common mechanical mod shape. It's a single battery cylinder with a fire button at the base and a 510 connection at the top. Copper and brass tubes offer the lowest voltage drop, meaning more of your battery's power reaches the coil.

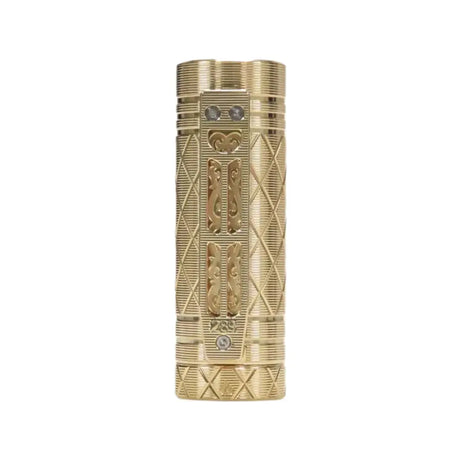

Hybrid 510 connections take that a step further by letting the atomiser pin sit directly on the battery. That cuts out one contact point and tightens the electrical path. The Hyperion V2 by Thundercloud and the Arcless V2.0 by Mechvape both use hybrid connections with copper internals for minimal resistance.
If you're using a hybrid mech mod, your RDA must have a protruding 510 pin. Flush or adjustable pins can cause a hard short. Always check pin protrusion with a ruler before fitting any atomiser to a hybrid mechanical mod.
|
Mech Mod
|
Battery
|
Material
|
510 Type
|
|
Hyperion V2 (Thundercloud)
|
18650 or 21700
|
Brass or Copper
|
Hybrid
|
|
Arcless V2.0 (Mechvape)
|
18650, 20700 or 21700
|
Copper
|
Hybrid
|
|

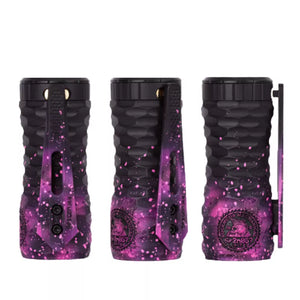

Swordfish V2 (Rockvape)
|
18650 or 21700
|
Brass
|
Side Fire
|
Battery Safety for Unregulated Mods
Every mechanical mod relies on the user to stay within safe battery limits. There's no chip monitoring your resistance or cutting off if something goes wrong, so understanding Ohm's law is not optional.
Before you fire a mech mod, check your coil resistance with an ohm reader or a regulated mod. Calculate the amp draw at full charge (4.2V for a fresh cell) and make sure it sits well within your battery's CDR.
-
Check resistance - use an ohm reader before every new build
-
Calculate amp draw - divide 4.2V by your coil resistance
-
Stay under CDR - never exceed your battery's continuous rating
-
Inspect wraps - rewrap at the first sign of a nick or tear
-
No loose cells - always use a battery case for transport
High drain 21700 cells like the Molicel P42A or Samsung 40T give you more headroom with 30A and 35A continuous ratings. A 0.15 ohm build on a fully charged cell draws 28 amps, which exceeds most 18650 ratings but sits within range for a high drain 21700.
Pairing a Mech Mod with an RDA
Mechanical mods are designed to pair with an RDA, not a sub ohm tank. Tanks draw consistent power that works well with regulated chips, but mech mods need low resistance builds to hit properly at battery voltage.
Single coil builds between 0.15 and 0.3 ohm work well on most tube mods. Dual coil setups can drop lower, but keep amp draw within safe limits for your cell. Thicker wire gauges like 22g or 24g kanthal and stainless steel heat up quickly at full voltage without needing exotic builds. If you'd rather not wrap your own, premade coils save time and give you a consistent starting point.
Your e-liquid matters too. High VG shortfills wick well in RDA decks and produce thicker vapour at the wattages a mechanical mod puts out. Thinner 50/50 liquids can flood the deck on a low resistance build.
