What Is a Vape Coil? Types, Resistance and Chart

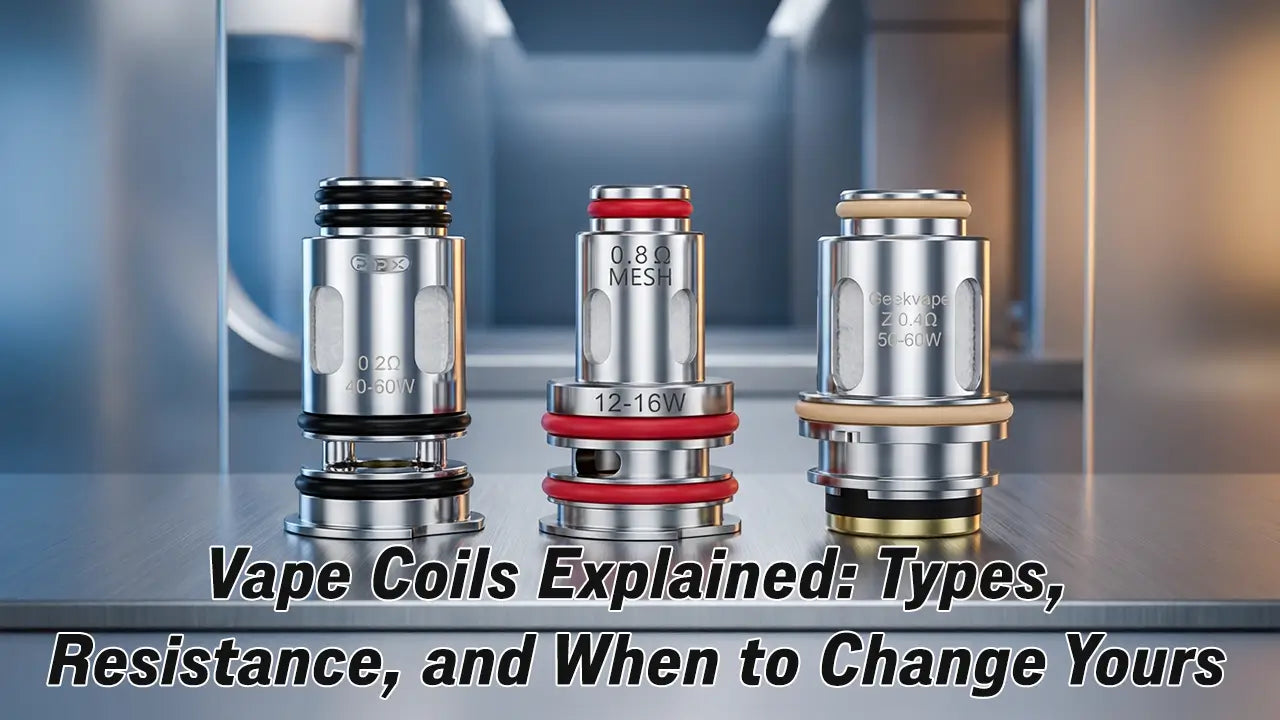

Three replacement vape coils, a 0.2 ohm, a 0.8 ohm mesh and a Geekvape Z 0.4 ohm, what is a vape coil explained

A vape coil is the part that heats your e-liquid and turns it into vapour. It sits inside your tank or pod, and when it wears out your flavour drops off and you get a burnt taste.

We get more live chat questions about coils than anything else on the site. Half the time it is someone three days into a new coil wondering why it already tastes burnt. Usually it is a priming issue, sometimes it is the wrong coil for their liquid, and occasionally it is a dud. This guide should help you work out which.

When a coil starts tasting scorched, our guide to why vapes taste burnt covers every cause and which ones are fixable.

How a Vape Coil Works

What is a vape coil

The coil in a vape, whether that is a pod kit, a tank or a vape pen, is a small metal element wrapped in cotton, housed in a metal casing that clips or screws into your tank or pod. Press the fire button and electricity flows through the metal, heating it up. The cotton wicks e-liquid onto the hot surface, and that liquid turns to vapour.

Where the coil sits depends on your vape. In a refillable vape kit, it usually slots into the base of the pod, so you pull the old one out and push a new one in.

In sub-ohm tanks, the coil screws into the bottom of the tank section.

Some pod kits have the coil built into the pod itself. When it is done, you replace the whole pod rather than just the coil, which is why those pods cost a bit more.

Vape Coil Ohms and Resistance Explained

Every coil has a resistance measured in ohms (Ω), printed on the side: 0.4Ω, 0.8Ω, 1.2Ω and so on. The lower the number, the more power gets through, and more power means more heat and more vapour.

The resistance has to match what your vape can handle. A 0.2Ω coil in a small pod kit will not even fire. A 1.2Ω coil in a 100W mod will work, but you will barely get anything out of it.

Vape Coil Resistance Chart

This vaping coil chart shows which draw, e-liquid and nicotine strength each common resistance suits. To work out what ohm coil to use, start with your e-liquid and the draw you want.

Vape coil resistance chart from below 0.4 ohm sub-ohm to 1.0 ohm and above tight MTL, with the draw and e-liquid each suits
Resistance Draw E-liquid
Below 0.4Ω Sub-ohm, direct to lung 70/30 or higher VG, 3mg or 6mg
0.4Ω Restricted lung draw 50/50, or 5mg nic salt
0.6Ω Loose MTL or light RDL 50/50, or 5mg to 10mg nic salt
0.8Ω MTL or RDL 50/50 or nic salt at any strength
1.0Ω and above Tight MTL Nic salt at 10mg or 20mg

Low resistance coils, below 0.4Ω, are sub-ohm coils. They get hot, produce big clouds and go through e-liquid quickly. You need a mod with decent wattage to drive them, and the draw goes straight into your lungs. If clouds are your priority, our round-up of the strongest sub-ohm tank picks covers the current options.

The difference between a 0.4 and 0.6 ohm coil is mostly heat and airflow. The 0.4Ω gives a warmer, looser lung draw and suits 50/50 or 5mg nic salt, while the 0.6Ω sits at loose MTL or light RDL. The difference between a 0.4 and 0.8 ohm coil is bigger: the 0.8Ω is a cooler, tighter draw that takes nic salt at any strength.

0.4Ω to 0.8Ω coils cover the RDL range and the looser end of MTL. A lot of newer pod kits ship with 0.6Ω and 0.8Ω pods because they balance flavour and vapour without draining liquid.

High resistance coils, 1.0Ω and above, are tight MTL. The vape is cooler and the draw is the closest thing to a cigarette. MTL coils suit 50/50 freebase and nic salts.

If the vaping styles themselves are what you are weighing up, our guide to MTL, RDL and DTL covers the draw, the liquid and the kit for each.

Different Types of Vape Coils

Types of vape coil compared: mesh for even heating and longer life, wire in older tanks, and ceramic for clean flavour

Mesh coils are what you will find in most coils sold today, sub-ohm or pod. A flat sheet of metal with holes punched through it sits against the cotton wick. The large surface heats e-liquid evenly, and mesh tends to outlast wire because the heat does not concentrate on a few small points. Most of our sub-ohm coils are mesh.

Wire coils were the standard before mesh came along: Kanthal wire wound into a spiral around cotton. You will still find them in older tanks and some budget coils. They do the job, but mesh beats them on flavour and lifespan.

Ceramic coils are a niche option. Porous ceramic holds the liquid instead of cotton. The flavour is very clean and they can last a long time, but vapour output is lower and they take a while to saturate.

The metal itself also varies. Kanthal is the default and works in wattage mode. Stainless steel works in both wattage and temperature control. Nickel and titanium are temperature control only and have mostly fallen out of mainstream use.

Which Coil Fits My Vape

Every coil range is made for specific hardware, so a SMOK coil will not fit a Vaporesso tank. Check the model name on your tank or pod, or in the box your kit came in, then match the coil to it.

Vaporesso coils cover the GTX range used across their pods and tanks.

Geekvape coils cover the Z series and the Boost range.

SMOK, Innokin and Aspire pair their coils to their own kits and tanks, so their brand pages are the quickest way to match a coil to its family.

Matching Coils to E-Liquid

Getting this wrong is one of the fastest ways to burn through coils or get a bad vape.

E-liquid type VG/PG ratio Coil resistance What happens if wrong
Nic salts 50/50 0.8Ω and above Too low: harsh and flooded
Freebase 50/50 50/50 0.8Ω and above Too low: spitting and a harsh throat hit
Shortfills 70/30 and up Below 0.6Ω Too high: dry hits and a dead coil

Put high VG liquid in a pod kit with a 1.2Ω coil and the cotton cannot wick fast enough, so you get dry hits and a dead coil within a day. Go the other way, thin 50/50 in a big sub-ohm coil, and you get spitting and a harsh throat hit.

If you are not sure what ratio your liquid is, it will be printed on the bottle. Match it to the table above.

When to Change Your Vape Coil

A coil that is going bad has obvious symptoms.

Four signs it is time to change your vape coil: burnt taste, faded flavour, less vapour, and gurgling or leaking
  • Burnt or off taste. If your e-liquid tastes charred or just wrong compared to a fresh coil, that coil is done. No amount of waiting or refilling brings it back.
  • Faded flavour. Not outright burnt, but flat. That is carbon and gunk on the cotton.
  • Less vapour than usual with a full battery and enough liquid in the tank. The heating surface is clogged.
  • Gurgling, spitting or leaking that starts out of nowhere. A worn coil does not seal or wick the same way.

Our vape crackling guide explains which noises are normal and which mean the coil is done.

Most coils last one to two weeks with regular use, and sweet dessert e-liquids shorten that. Our guide to how long coils last covers what wears them out and how to stretch them.

For a rough number for your own setup, our coil life calculator works it out from your wattage and daily use.

Priming a New Coil

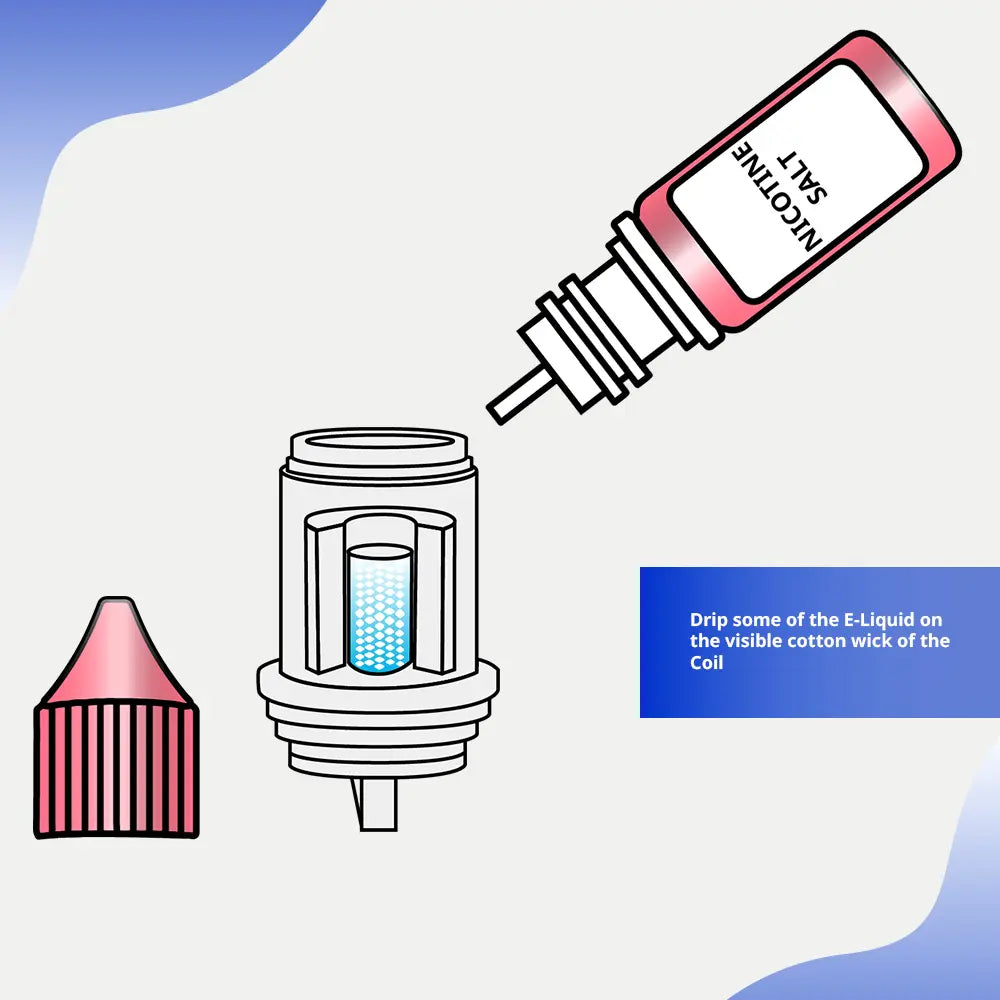

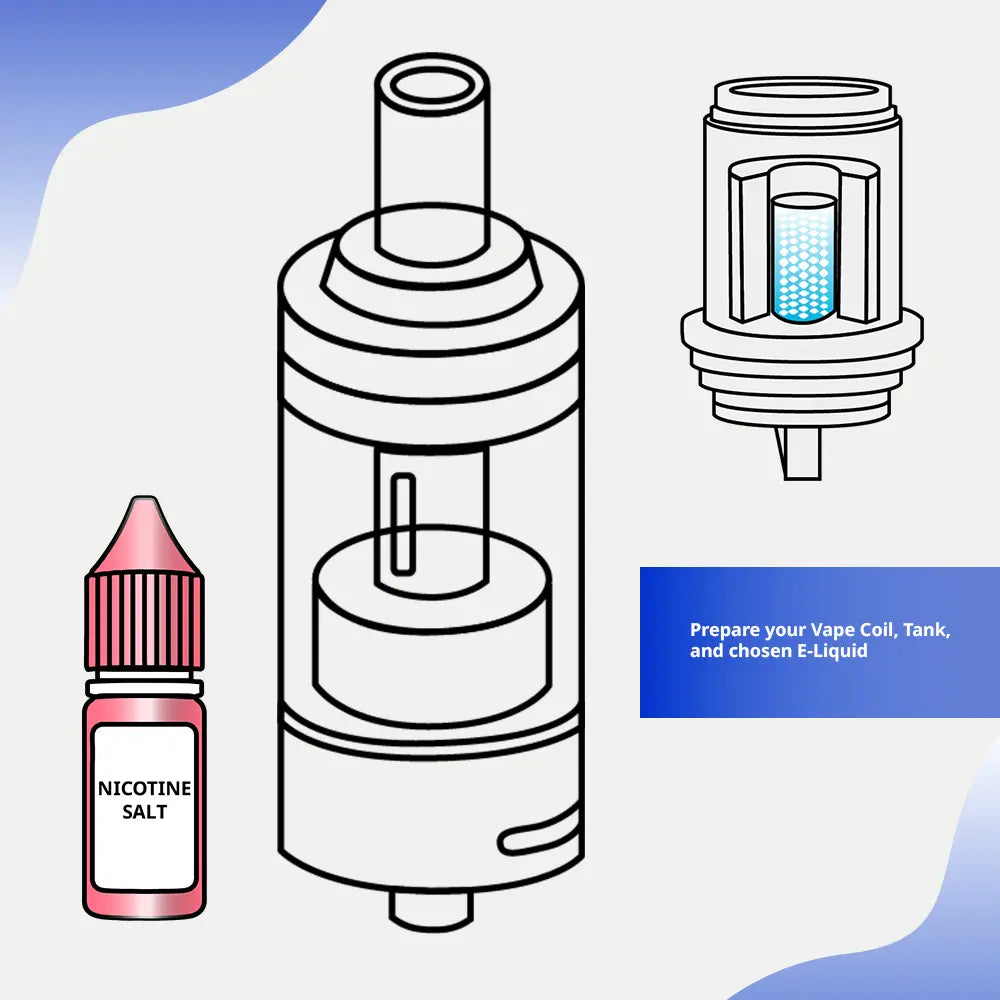

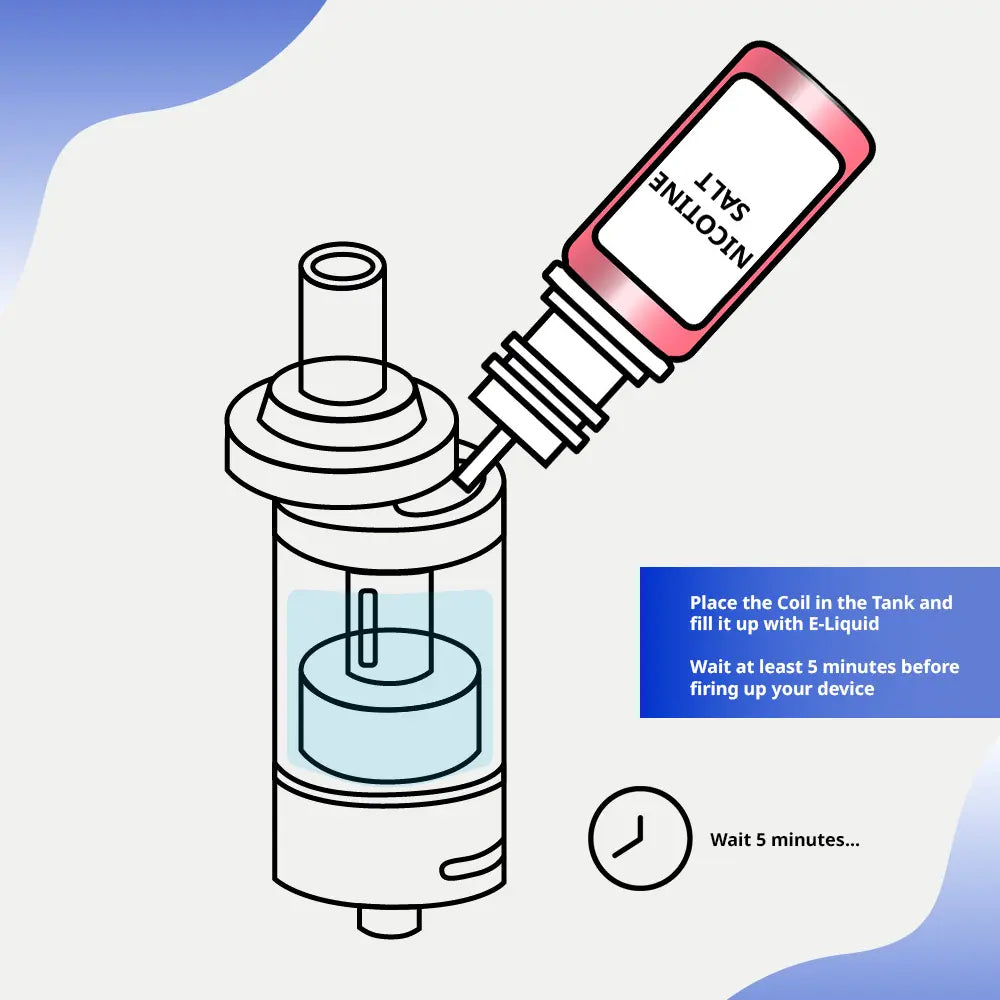

New coil, first thing: let it soak. Drip a few drops of e-liquid onto the cotton through the side ports, fit it, fill the tank or pod and leave it for 10 minutes. Then start at low wattage for the first 10 to 20 puffs.

Skipping this is the number one cause of a burnt coil on day one. Our coil priming guide walks through it step by step.

Making Your Coils Last Longer

  • Sweetener is the number one coil killer. Dessert, candy and drink flavoured e-liquids gunk up coils fast. Fruit, menthol and tobacco flavours are much gentler.
  • Do not let your tank get low. When the cotton dries out even briefly, it scorches, and the coil never recovers.
  • Take a second between puffs. Chain vaping does not give the cotton time to soak again. Three or four seconds between draws is enough.
  • Back off the wattage. If your vape has adjustable power, staying 5W to 10W below the coil's maximum rating extends its life without losing flavour.

Frequently Asked Questions

Depends on the pod. Some have it built in, so when the coil dies the whole pod goes. Others have a removable coil that slots into the base, so you just swap the coil and keep the pod. Flip your pod over and you'll usually see which type you've got.

Yeah, just swap the liquid. New flavour comes through after a few puffs as the old one clears out. Menthol and aniseed tend to hang around longer than other flavours, but you don't need a fresh coil every time you fancy a change.

About the same as other coils in practice - one to two weeks. Mesh holds up slightly better because heat spreads more evenly. But sweet liquids and chain-vaping will still gunk it up on a similar timeline.

Anything 0.8Ω or above. The 1.0-1.2Ω range is the sweet spot for most MTL setups.

Sub-ohm, below 0.6Ω. Thick liquid needs heat and airflow to vaporise, and that's what low-resistance coils are built for.
