By Geek Vape
Geekvape Aegis Mini 5 75W Box Mod
Geekvape Aegis Mini 5 75W Box Mod
Earn 31 Reward Points
Product Highlights
Type of Device: Box Mod
With Adjustable Wattage Function
Internal 3200mAh Battery
Latest Geekvape AS Chipset
Colour
RequiredFrequently Bought Together
Aegis Mini 5 Mod
The Geekvape Aegis Mini 5 mod is a compact box mod with a 3200mAh built-in battery and 75W max output. It's IP67 rated for dust, splash, and shock resistance, and takes any tank via the standard 510 connection. Three modes - VW, Power, and Bypass - cover everything from MTL to DTL depending on what you've got screwed on top. USB-C 5V/3A fast charging.
This is the mod-only version. If you want the full setup with the Z Nano 3 tank and B Series coils included, the Aegis Mini 5 Kit is the one to go for. No external batteries needed - the 3200mAh cell charges in the mod and should get most vapers through a full day.
Key Features
- 3200mAh built-in battery USB-C 5V/3A fast charging
- 75W max output 5W to 75W range
- IP67 rated dustproof, shockproof, splash-resistant
- 3 modes VW, Power, Bypass
- 0.87" OLED screen wattage, battery, resistance, puff count
- 510 connection fits any tank, RTA, or RDA
- 0.1-3.0 ohm supports sub-ohm DTL to high-resistance MTL coils

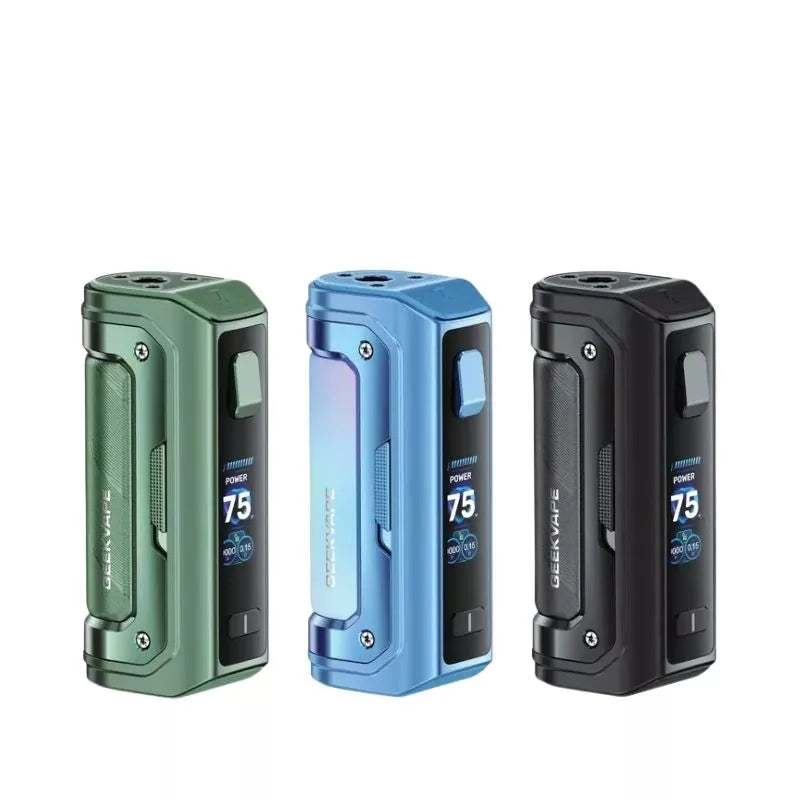

- 6 colours Aqua Blue, Black, Forest Green, Polar Silver, Rainbow, Sunset Rose
Three Modes
|
Mode |
What It Does |
|
VW (Variable Wattage) |
You set the wattage, 5W to 75W |
|
Power |
Reads your coil and adjusts output |
|
Bypass |
Raw battery voltage, unregulated |
VW is the one you'll use day to day. Power Mode handles the wattage for you if you'd rather not set it manually. Bypass sends battery voltage straight to the coil without regulation - only use it if you know what you're doing.
IP67 Build and Aegis Mini 5 Mod Specs
Zinc alloy body with PC panels and PU leather grip. IP67 means fully sealed against dust and handles water splashes - not submersion, but rain and spills are fine. The AS chipset fires instantly and keeps output consistent as the battery drains.
|
Spec |
Detail |
|
Model |
Geekvape Aegis Mini 5 Mod |
|
Output |
5W to 75W |
|
Battery |
3200mAh built-in |
|
Charging |
USB-C 5V/3A |
|
Chipset |
Geekvape AS |
|
Screen |
0.87" OLED |
|
Modes |
VW, Power, Bypass |
|
Resistance |
0.1-3.0 ohm |
|
Protection |
IP67 (dust, splash, shock) |
|
Safety |
Short circuit, overheat, overcharge, deep discharge, 8s cutoff |
|
Connection |
510 threaded |
|
Materials |
Zinc alloy, PC, PU leather |
|
Style |
MTL, RDL, DTL |
|
Colours |
6 |
Why Choose the Aegis Mini 5 Mod
If you've already got a tank you're happy with, the mod-only version saves you paying for one you don't need. The 510 connection takes whatever you're running - sub-ohm tanks at higher wattages, MTL tanks at lower settings, or an RDA. The 0.1-3.0 ohm resistance range covers the lot.
The built-in 3200mAh battery is the main draw for a compact mod. No spare 18650s to carry, no external charger - just plug it in via USB-C. If you want more wattage and don't mind the extra size, the Aegis Legend 5 Mod runs 200W on dual 18650s with IP68.
What's in the Box?
- 1 x Geekvape Aegis Mini 5 Mod
- 1 x USB-C Cable
- 1 x User Manual
