VooPoo PnP X Replacement Coils

VooPoo PnP X Coils

VooPoo PnP X coils are mesh replacement coils for the newer Drag and Argus kits. Five resistances from 0.15 ohm through to 0.6 ohm cover DTL, RDL, and MTL vaping. A 4-layer leak-resistant seal at the base, cotton chamber, airflow, and coil top keeps e-liquid where it belongs. Thermo-stable cotton handles up to 100ml per coil before a replacement is needed.

Compatible with the Drag X2, Drag S2, Drag X3, Drag S3, and Argus Pro 2. Also fits the Argus E40 and Uforce-X Nano tank. Not the same as standard PnP coils and will not fit older kits. Press-fit installation with no threading required. Sold four to a box. Browse the full Voopoo coils range for other coil platforms.

Key Features

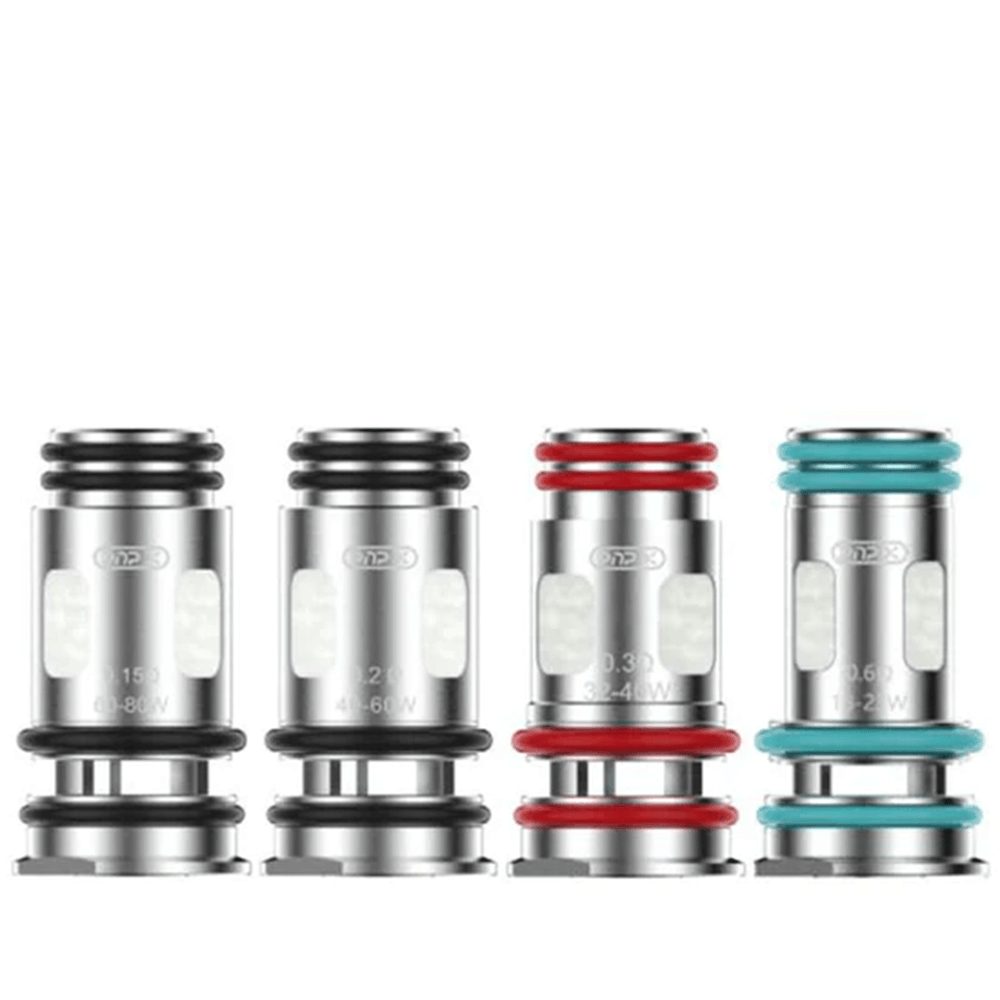

• Five resistances: 0.15, 0.2, 0.3, 0.45, and 0.6 ohm
• 4-layer leak protection at base, cotton chamber, airflow, and coil top
• Thermo-stable cotton rated for up to 100ml per coil
• Mesh construction for even heating across the full coil surface
• Press-fit installation, same method as standard PnP coils
• 20W to 80W range depending on resistance
• 4 coils per box

PnP X Coil Resistances

The 0.3 ohm is the most popular option. Running at 32 to 40W, it handles 50/50 e-liquids and high-VG shortfills without issues at moderate battery drain.

At 0.6 ohm, the draw tightens at 20 to 28W for nic salts at 10mg or 20mg. The 0.45 ohm falls between RDL and MTL at 25 to 32W. On the other end, the 0.2 ohm (40 to 60W) and 0.15 ohm (60 to 80W) are the cloud options. Warmer vape with more vapour, but both require high-VG e-liquid to wick well.

Resistance	Wattage	Style	E-Liquid
0.15 ohm	60 to 80W	DTL	High VG, max VG, shortfills

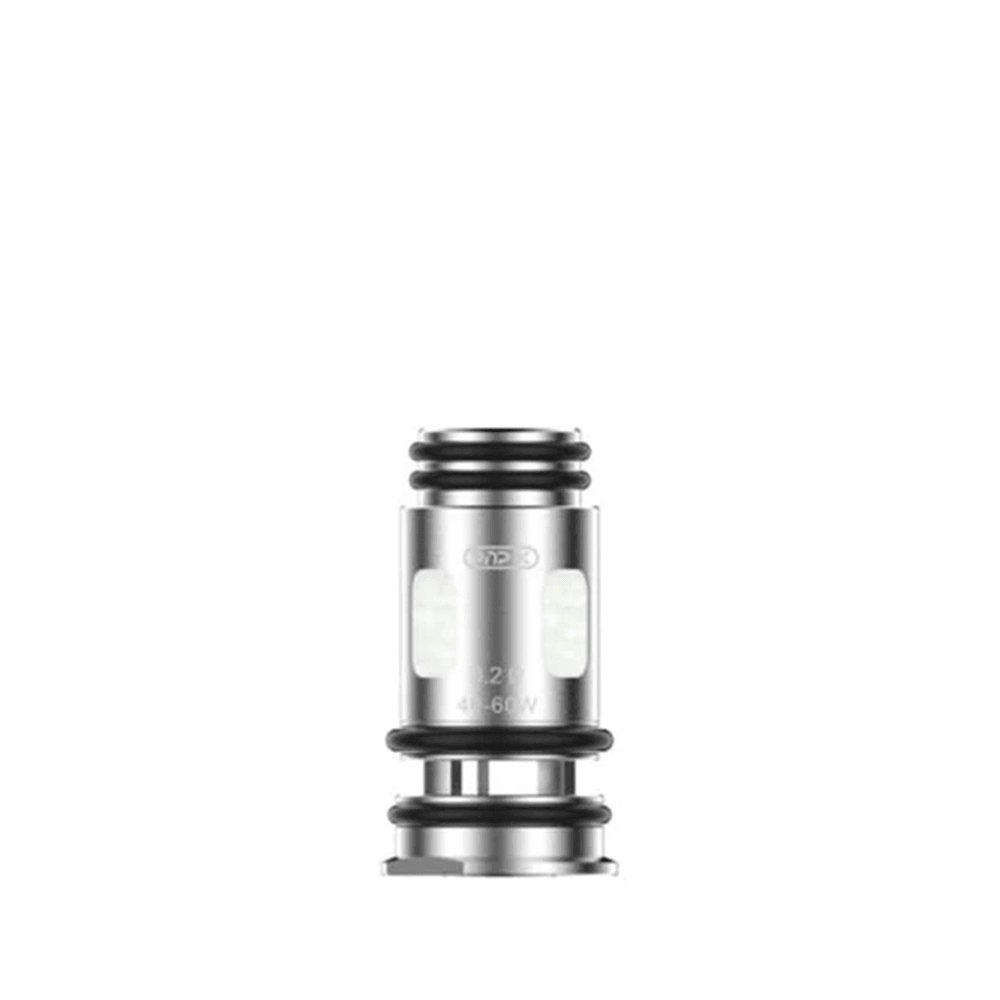

0.2 ohm	40 to 60W	DTL	High VG 70+, shortfills
0.3 ohm	32 to 40W	DTL and RDL	High VG, 50/50

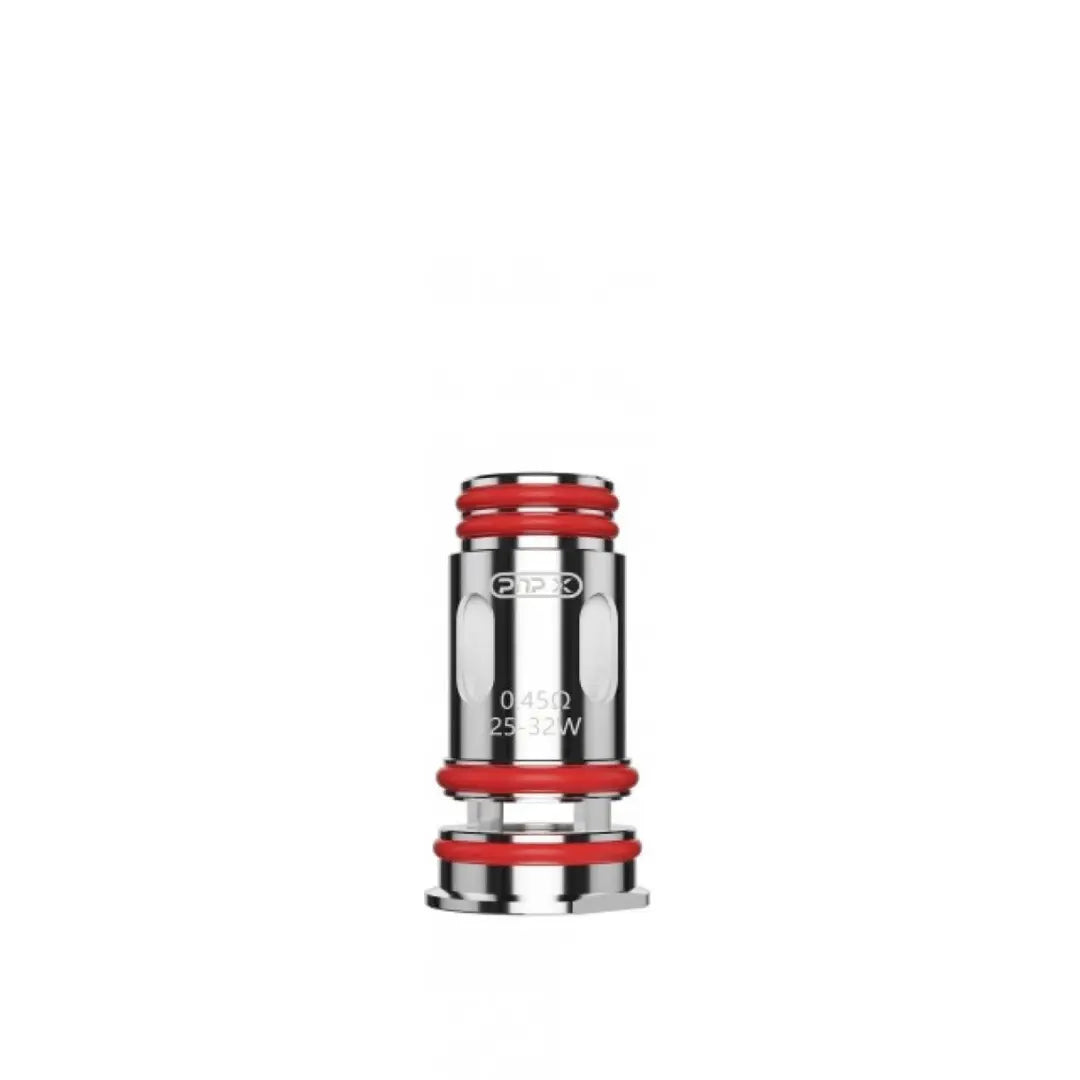

0.45 ohm	25 to 32W	RDL	50/50, nic salts

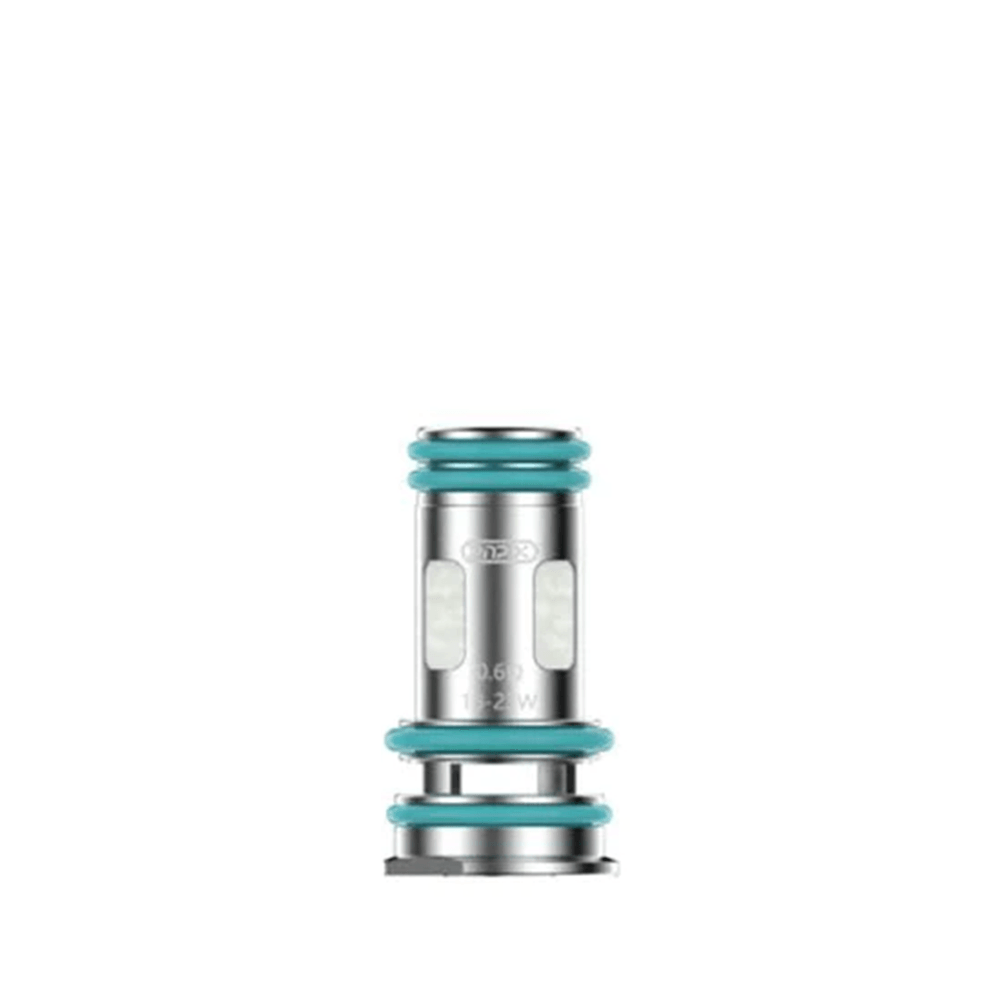

0.6 ohm	20 to 28W	RDL	Nic salts, 50/50

All five are mesh coils with the same 4-layer seal and thermo-stable cotton. The difference is wattage range and draw tightness.

PnP X vs Standard PnP Coils

PnP X coils look similar to standard PnP coils and press-fit the same way. However, they are a different platform and swapping between the two is not possible.

	PnP X Coils	Standard PnP Coils
Kits	Drag X2, S2, X3, S3, Argus Pro 2, Argus E40	Drag X, Drag S, Vinci, Argus Z
Seal	4-layer leak protection	Standard single seal
Cotton	Thermo-stable (up to 100ml)	Standard cotton
Resistances	0.15, 0.2, 0.3, 0.45, 0.6 ohm	0.15 to 1.2 ohm (8+ options)

Owners of an original Drag X or Drag S need standard VooPoo PnP coils, not PnP X. PnP X coils will not fit those older kits.

Compatible Kits

PnP X coils work with:

• VooPoo Drag X2
• VooPoo Drag S2
• VooPoo Drag X3
• VooPoo Drag S3
• VooPoo Argus Pro 2
• VooPoo Argus E40
• Uforce-X Nano Tank
• PnP X DTL Pod Tank
• PnP X MTL Pod Tank

PnP X coils do NOT fit the original Drag X, Drag S, Drag 2, or Vinci. Any older VooPoo kit that uses standard PnP coils is not compatible.

Coil Specifications

Spec	Detail
Coil Type	Mesh
Resistances	0.15, 0.2, 0.3, 0.45, 0.6 ohm
Wattage Range	20W to 80W (varies by resistance)
Cotton	Thermo-stable
Seal	4-layer leak protection
Installation	Press-fit
Coil Life	Up to 100ml per coil
Quantity	4 coils

What is in the Box?

• 4 x VooPoo PnP X Coils (0.15, 0.2, 0.3, 0.45, or 0.6 ohm sold separately by resistance)
