VooPoo PnP Replacement Coils

VooPoo PnP Coils

VooPoo PnP coils are press-fit mesh replacement coils for the Drag, Vinci, and older Argus kits. Eight resistance options from 0.15Ω through to 1.2Ω cover everything from tight MTL through to full DTL. These are the standard PnP coils, not the newer PnP-X range.

The range splits into four series. VM (Vinci Mesh) handles DTL and RDL, TM (Thin Mesh) covers loose MTL, TR (Tight Resistance) gives you the tightest draw, and DW (Dual Wire) falls in the RDL crossover. All of them press-fit in the same way and come in fives.

Key Features

• Eight Resistances 0.15Ω through 1.2Ω across MTL, RDL, and DTL
• Four Coil Series VM, TM, TR, and DW for different vaping styles
• Press-Fit Install no threading, push in and go
• Mesh Construction even heating across the coil surface
• 10W to 80W Range depending on resistance
• Wide Compatibility Drag X, Drag S, Vinci, Navi and more
• 5 Coils all resistances sold in fives

VooPoo PnP Coils Difference

This is the part most people search for. Each coil model has a different resistance, wattage range, and draw style.

DTL Coils

RDL Coils

MTL Coils

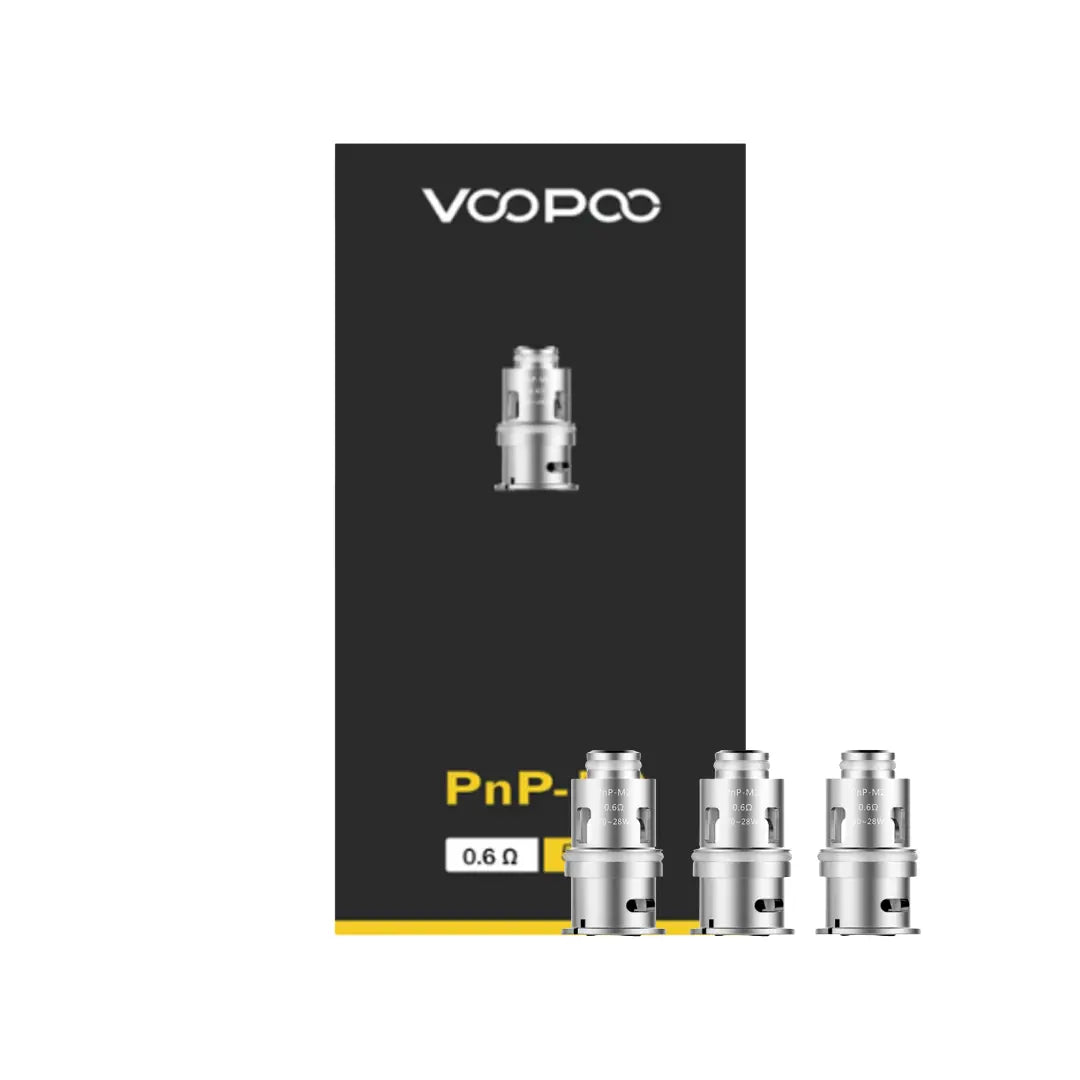

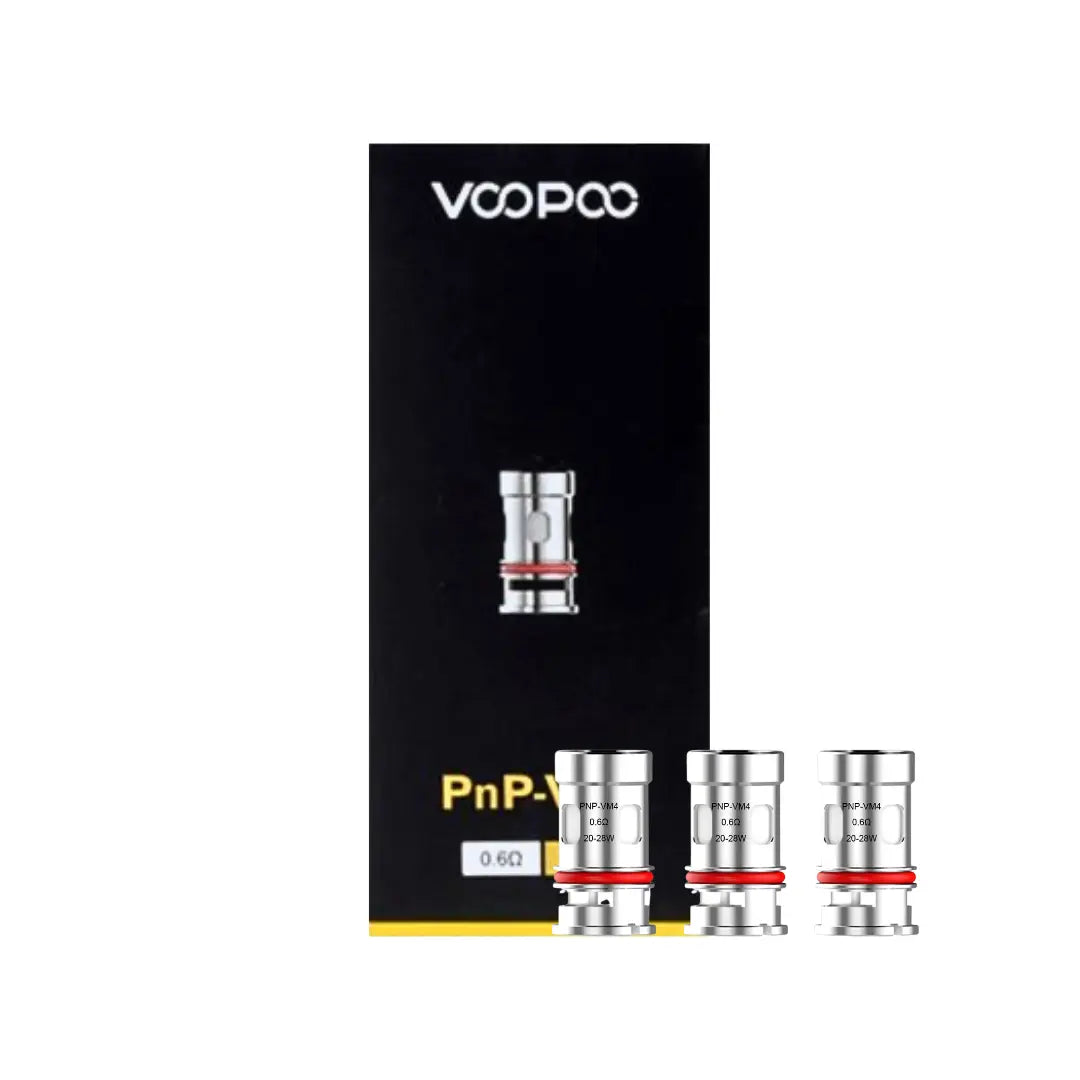

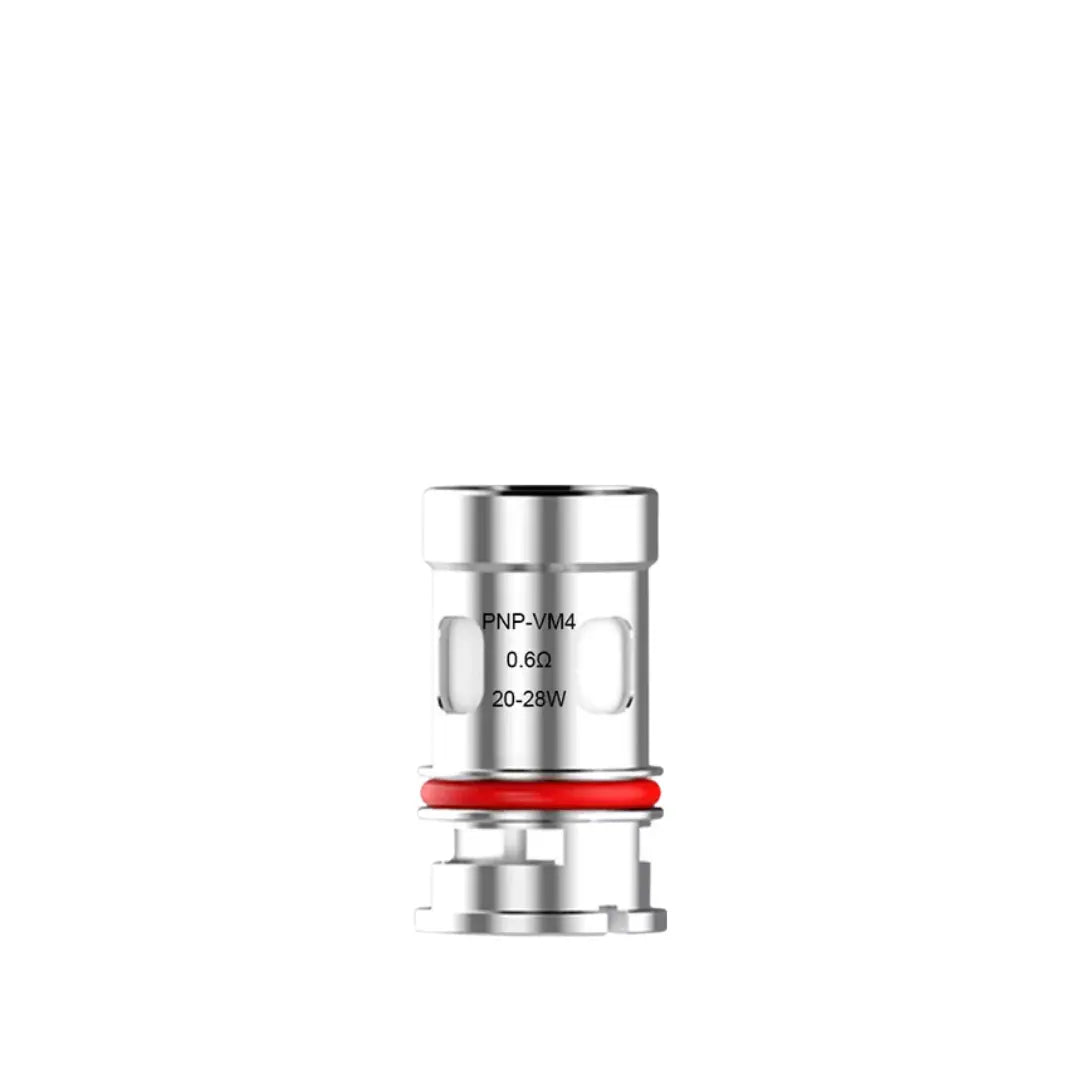

Two 0.6Ω options here. The VM4 is standard mesh with a slightly looser draw. The DW60 uses dual wire construction and goes a bit tighter. If you're using nic salts at the 0.6Ω level, the DW60 tends to suit better.

The VM5 (0.2Ω) and VM6 (0.15Ω) are the cloud coils. Both need high VG e-liquid and a kit that can reach 40W or more. The VM1 (0.3Ω) is the all-rounder for DTL at a lower wattage.

For MTL, the TR1 (1.2Ω) is the tightest draw in the PnP range. Closest thing to a cigarette pull. The R2 (1.0Ω) and TM2 (0.8Ω) loosen up gradually from there.

Compatible Kits

Standard VooPoo PnP coils fit:

• VooPoo Drag X
• VooPoo Drag S
• VooPoo Vinci
• VooPoo Vinci X
• VooPoo Vinci Air
• VooPoo Navi
• VooPoo Find

The Drag X2, S2, X3, and S3 take the newer VooPoo PnP-X coils with 4-layer leak protection and thermo-stable cotton. Standard PnP coils will not fit those kits.

PnP Coil Specifications

What's in the Box?

• 5x VooPoo PnP Coils (sold separately by resistance)
