OXVA Xlim SQ Pro 2 Square Touchscreen Pod Vape Kit

OXVA Xlim SQ Pro 2

The OXVA Xlim SQ Pro 2 is a square pod vape kit with a 1.09 inch HD touch screen, a 1600mAh battery and 5 to 30W output, and OXVA call it the Xlim family's first touch screen pod. It takes every Xlim pod and sits with the rest of the OXVA vapes we sell.

The SQ Pro 2 takes over from the original Xlim SQ Pro. OXVA kept the square shape and the Xlim pods, then added the touch screen, a bigger battery and a puff diary that tracks up to 30 days, so you can see how much you vape from one week to the next.

A Square Vape with a Touch Screen

The SQ Pro 2 is a square shaped vape with a round touch screen set into a flat zinc alloy body, 93.4mm tall and 48mm wide. The square shape sits flat in the hand and in a pocket, and it fits our range of small vapes.

Next to the usual pen-shaped e-cig it looks more like a small watch, and the screen works like a watch face too. You swipe and tap to change the wattage, check your puffs and pick a look, and it locks itself when you stop touching it.

OXVA Xlim SQ Pro 2 Key Features

• 1.09 inch HD touch screen
• 1600mAh battery, up to 7 days in eco mode
• 5V/2A USB-C charging, full in 45 minutes
• 5 to 30W with auto draw
• Intelligent puff diary with a 5 digit counter
• 64 screen combinations from themes, animations and wallpapers
• Fits Xlim Top Fill, EZ and V2 pods
• Side airflow control from MTL to RDL

1.09 Inch Touchscreen

The 1.09 inch HD touch screen has a 316PPI pixel density, a 60Hz refresh rate and a 248 x 240 resolution, and OXVA rate the touch response at 30ms. It shows your wattage, pod resistance, puff time, battery and puff count on one watch style face.

After a few seconds without a touch the screen locks, so it does not change settings in your pocket. For a larger 2.2 inch touch screen, the OXVA Xlim 3 Ultra is the bigger model.

Puff Tracker

OXVA's intelligent puff diary tracks your puffs in real time, with a weekly habit overview and 30 day usage trends, and the 5 digit counter goes up to 99,999. OXVA say the records are private, visible only to you, and that they do not collect or access any of the data.

1600mAh Battery and Eco Mode

The 1600mAh battery is a third bigger than the original SQ Pro's 1200mAh, and OXVA rate it at up to 7 days in eco mode. It charges by USB-C at 5V/2A and goes from flat to full in 45 minutes.

Custom Wallpaper and Themes

The SQ Pro 2 has 4 themes, 4 animation effects and 4 standby wallpapers, which gives 64 combinations for the screen. Long press the main screen to switch, then slide to choose your wallpaper.

On-Screen Tools

Six tools sit on the touch screen alongside the vaping settings:

• Stopwatch
• Flashlight
• Calendar
• Date
• Eco mode
• Language, with 12 to choose from

Xlim SQ Pro 2 Pod Compatibility

The SQ Pro 2 takes all three types of Xlim cartridge, and works with nic salt and freebase e-liquids:

Xlim cartridge	Resistances
Xlim Top Fill	0.4, 0.6, 0.8 and 1.2 ohm
Xlim EZ	0.4, 0.6, 0.8 and 1.2 ohm
Xlim V2	0.6, 0.8 and 1.2 ohm

The kit comes with a 0.6 ohm Xlim Top Fill cartridge fitted and a 0.8 ohm in the box. Spare Xlim pods come in all four resistances.

The same pods fit the rest of the OXVA Xlim range, so you can swap between kits.

Compared to the Xlim SQ Pro

These are the changes OXVA list from the original Xlim SQ Pro:

	Xlim SQ Pro	Xlim SQ Pro 2
Screen	Colour screen	1.09 inch HD touch screen
Battery	1200mAh	1600mAh
Puff counter	4 digit	5 digit
Screen looks	3 themes	64 combinations

How to Use the OXVA Xlim SQ Pro 2

To use the OXVA Xlim SQ Pro 2, press the function button 5 times in 2 seconds to turn it on, then draw to vape. Everything else is on the touch screen, as OXVA's manual sets out:

To do this	Do this
Turn on or off	Press the function button 5 times in 2 seconds
Vape	Draw on the mouthpiece
Wake and unlock the screen	Press the function button, then swipe
Change the wattage	Swipe right, then tap or slide
See your puff records	Swipe left
Open the basic settings	Swipe down
Open the common options	Swipe up
Change the theme or wallpaper	Long press the main screen, then slide to choose
Go back a screen	Slide right

Before the first puff on a fresh pod:

1. Fill the cartridge from the top and close it straight away to help stop leaks.
2. Leave it for 5 to 8 minutes, as OXVA's manual advises, so the coil soaks and does not burn.
3. Set the side airflow, turn the kit on and draw.

The SQ Pro 2 stops firing after 8 seconds of continuous vaping as a safety cut-off. The screen can also show these messages:

Screen message	What it means
Low Battery	The battery is low and needs charging
No Atomizer	The cartridge is not detected
Short	A short circuit is detected
Time Out	The puff lasted over 8 seconds
Temp High	The board inside is too hot

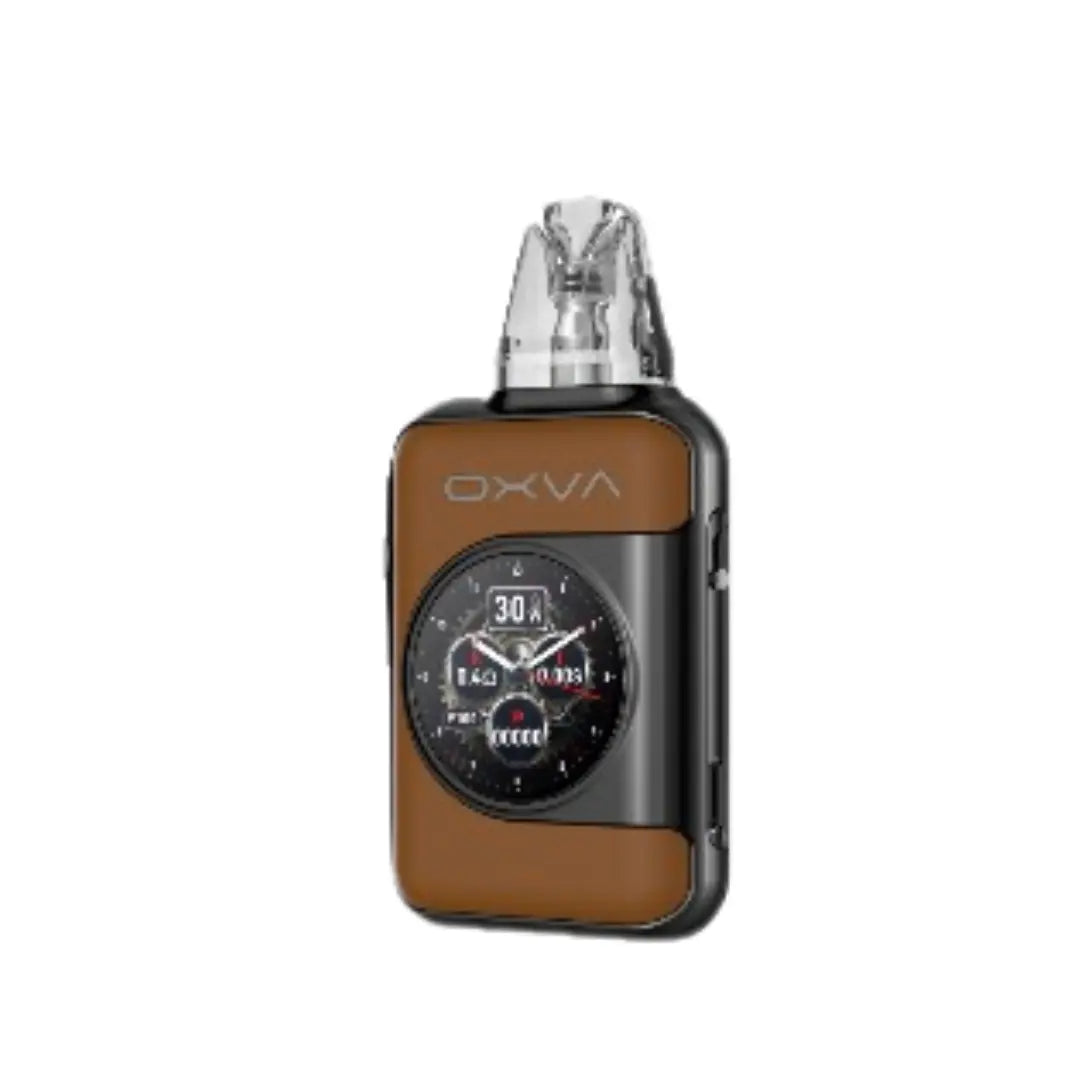

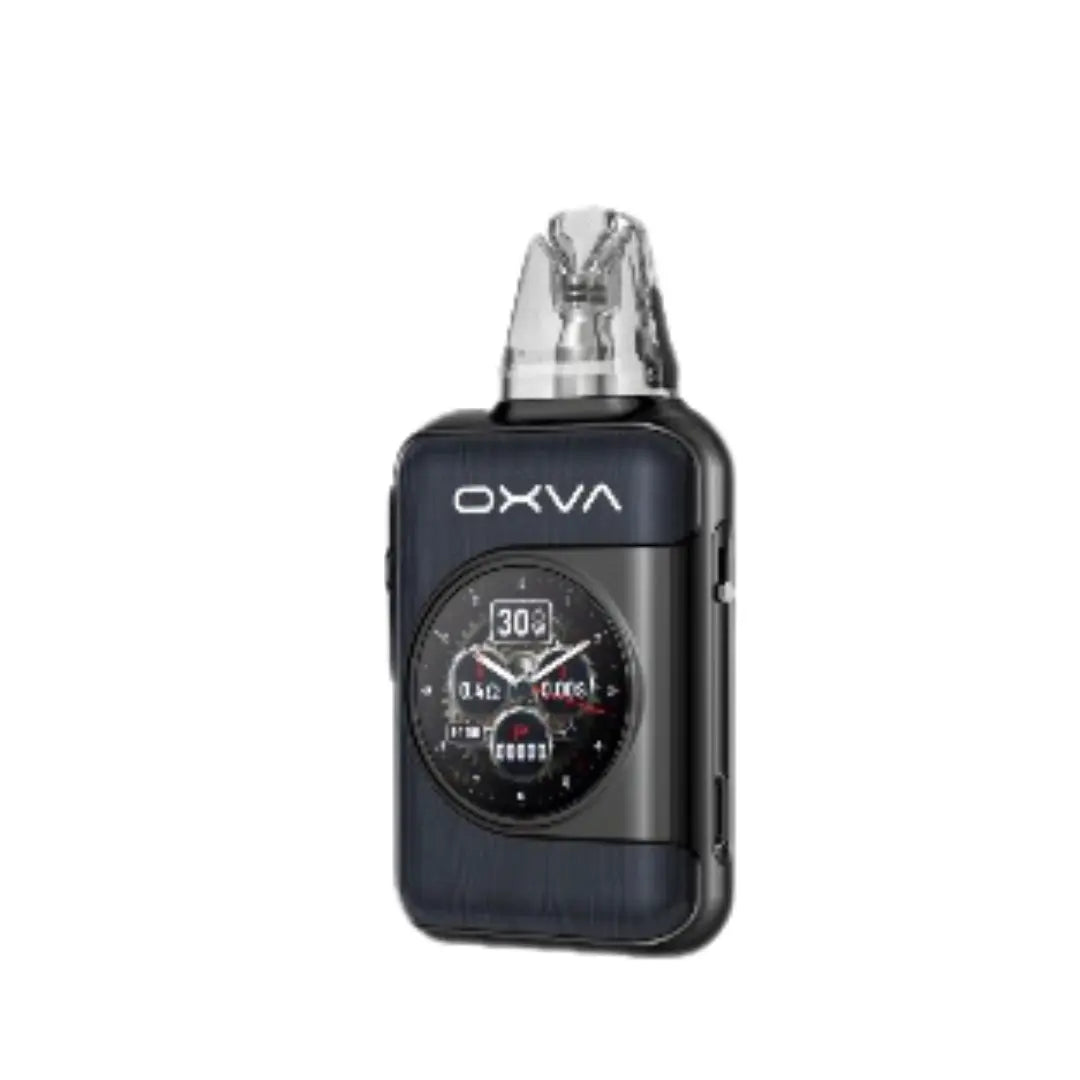

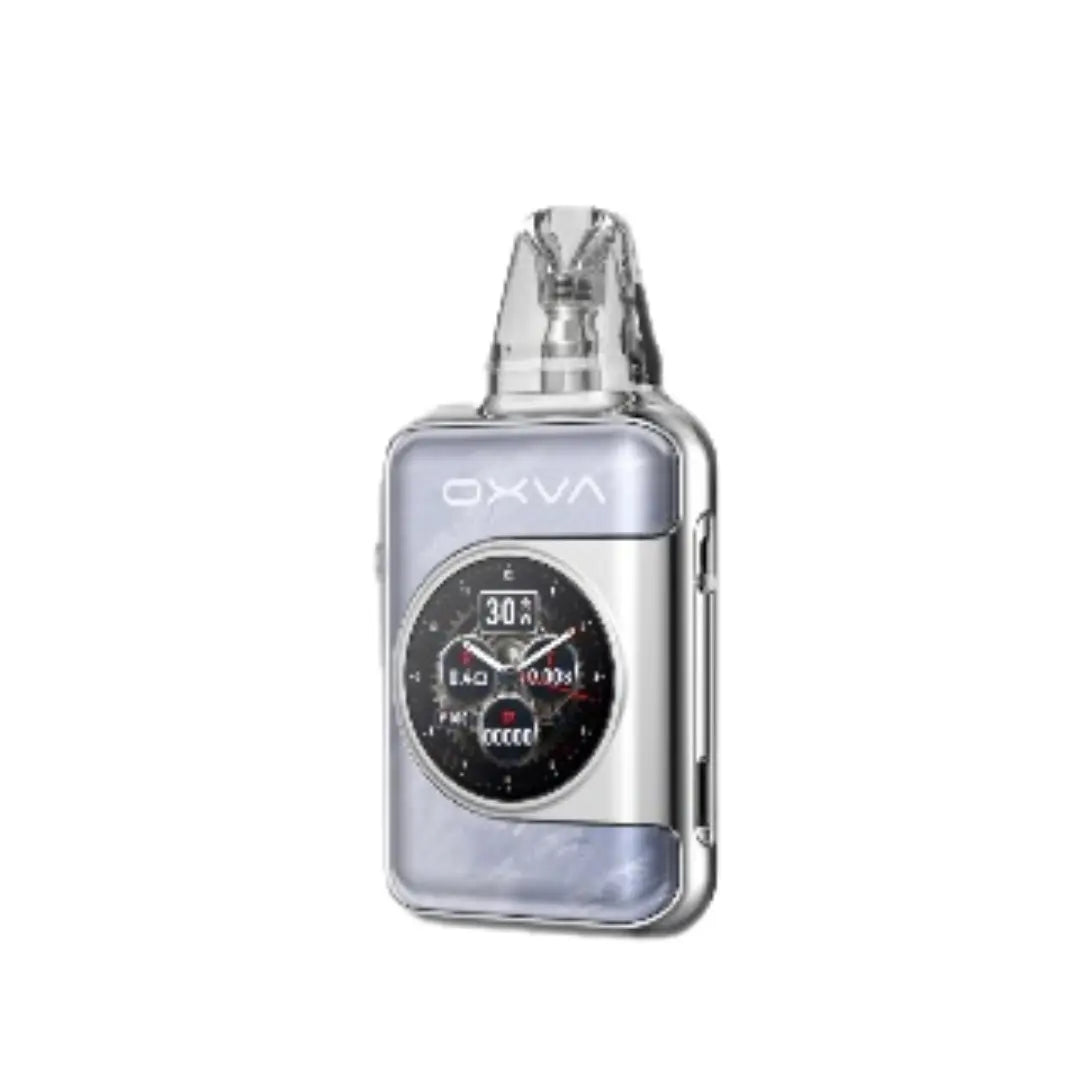

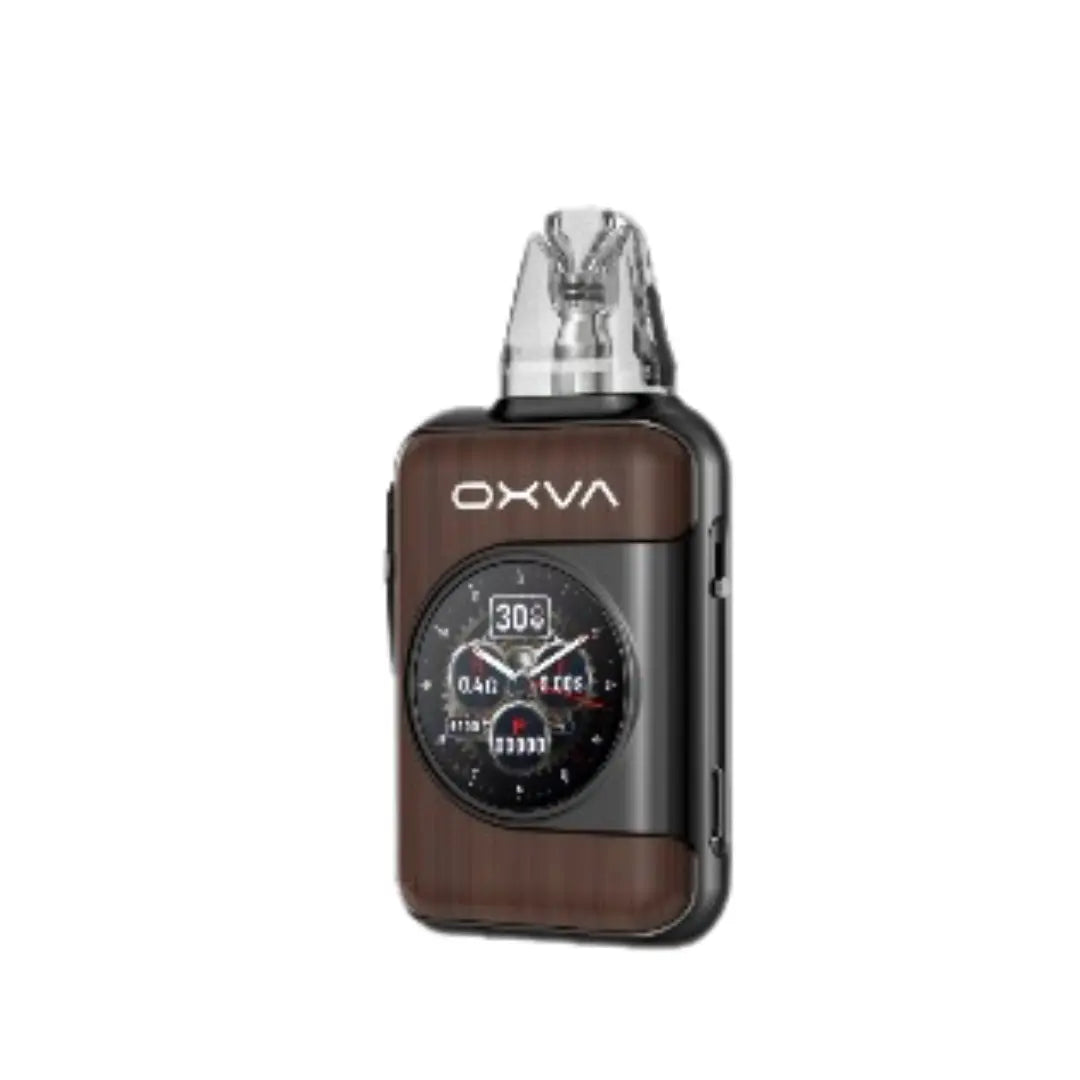

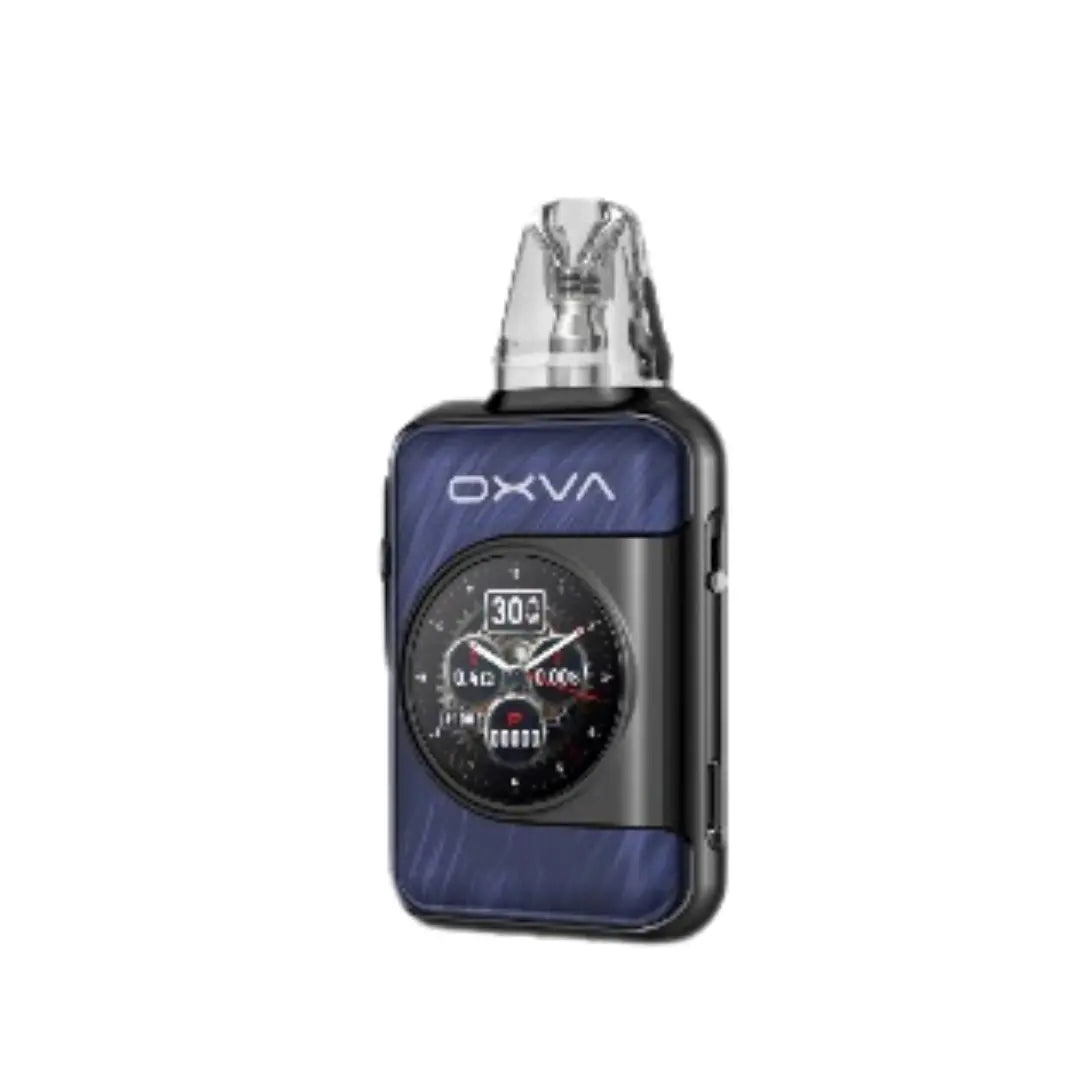

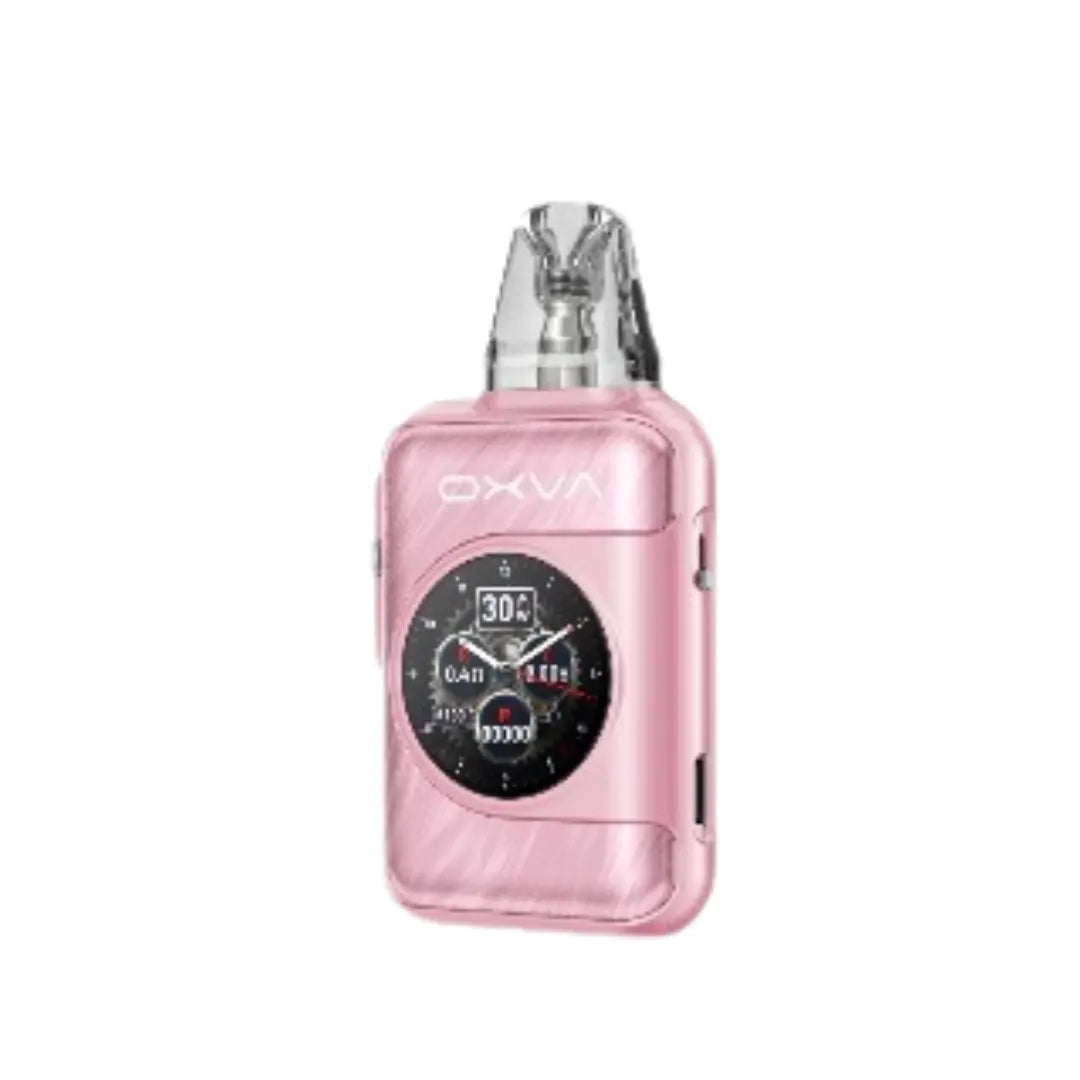

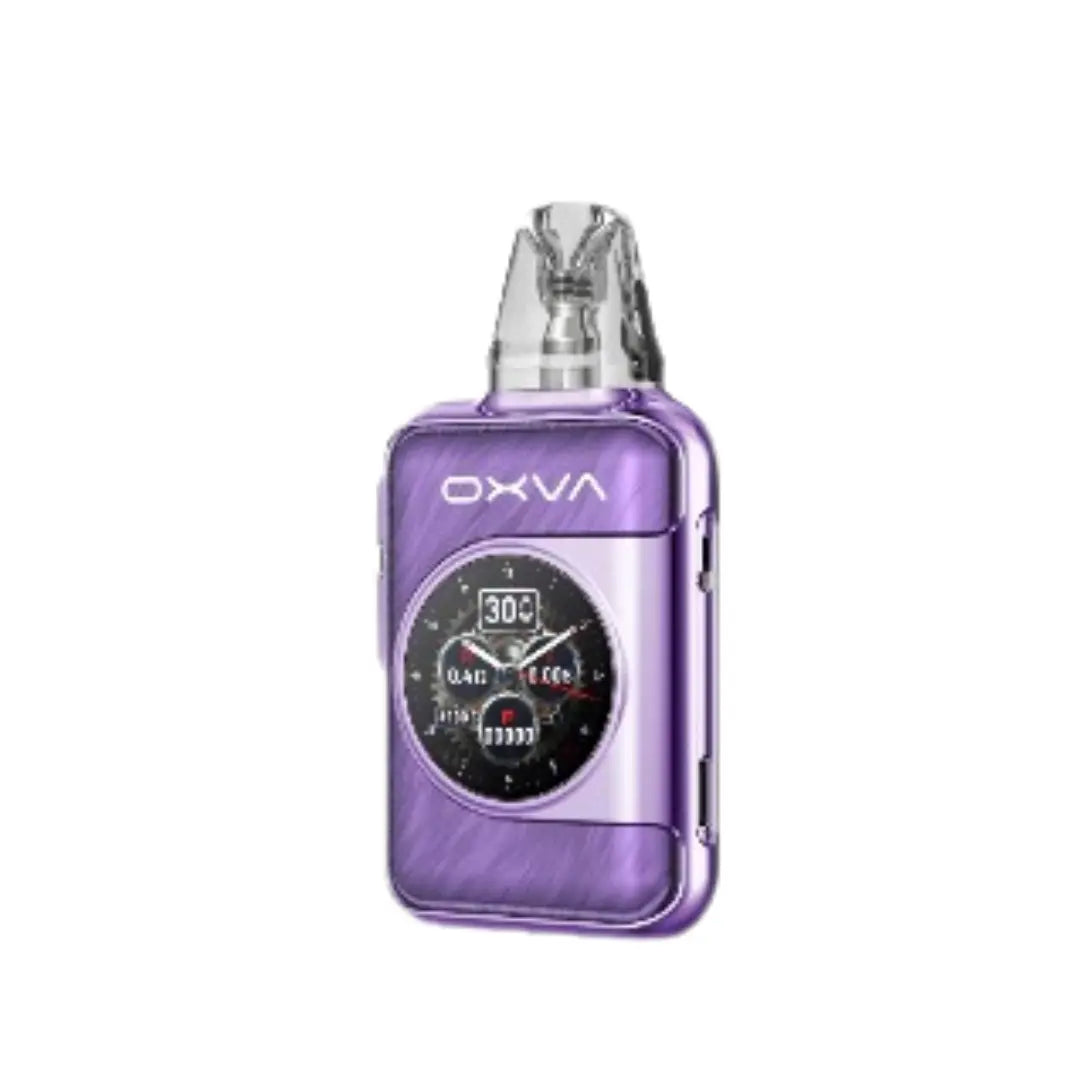

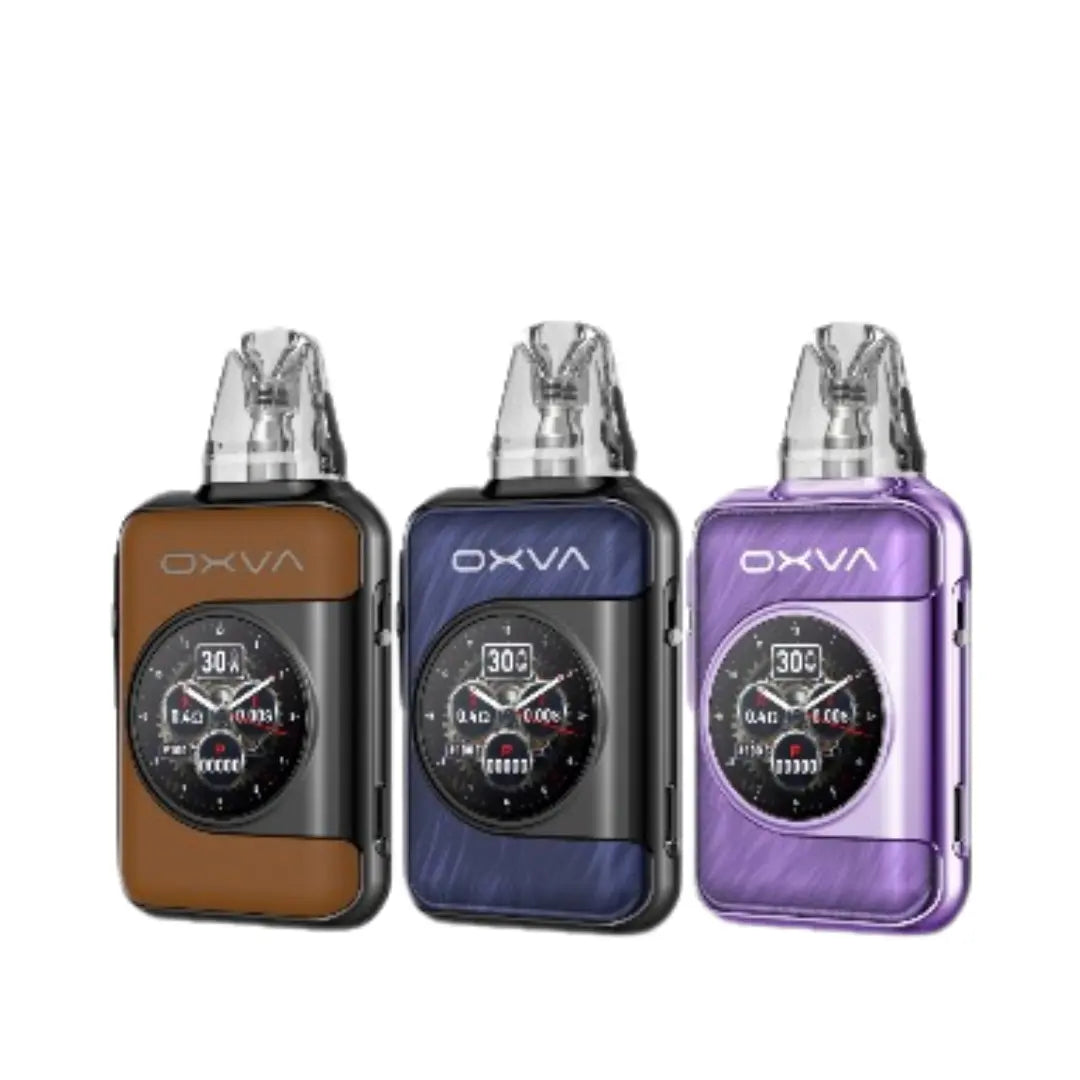

OXVA Xlim SQ Pro 2 Colours

The OXVA Xlim SQ Pro 2 comes in 10 colours, across marble, wood, leather and carbon finishes:

• Black Carbon
• Black Leather
• Blue Shadow
• Brown Leather
• Brown Wood
• Celadon Marble
• Dream Pink
• Dream Purple
• Frost Marble
• Gunmetal Wood

OXVA Xlim SQ Pro 2 Specifications

These are OXVA's specifications for the SQ Pro 2, a refillable vape with a built-in battery you charge by USB-C.

Specification	Details
Output	5 to 30W
Firing	Auto draw
Battery	1600mAh built in
Charging	USB-C, 5V/2A, full in 45 minutes
Screen	1.09 inch HD touch screen, 316PPI, 60Hz
Airflow	Side adjustable
Pods	Xlim Top Fill, Xlim EZ and Xlim V2
E-liquid	Nic salt and freebase
Size	93.4 x 48 x 20.01mm
Weight	114g
Material	Zinc alloy with IML or artificial leather

What's in the Box

The UK kit comes with:

• 1 x OXVA Xlim SQ Pro 2 device
• 1 x Xlim Top Fill 0.6 ohm cartridge (fitted)
• 1 x Xlim Top Fill 0.8 ohm cartridge
• 1 x Lanyard
• 1 x User manual
• 1 x Quick user guide
• 1 x Use suggestion card
