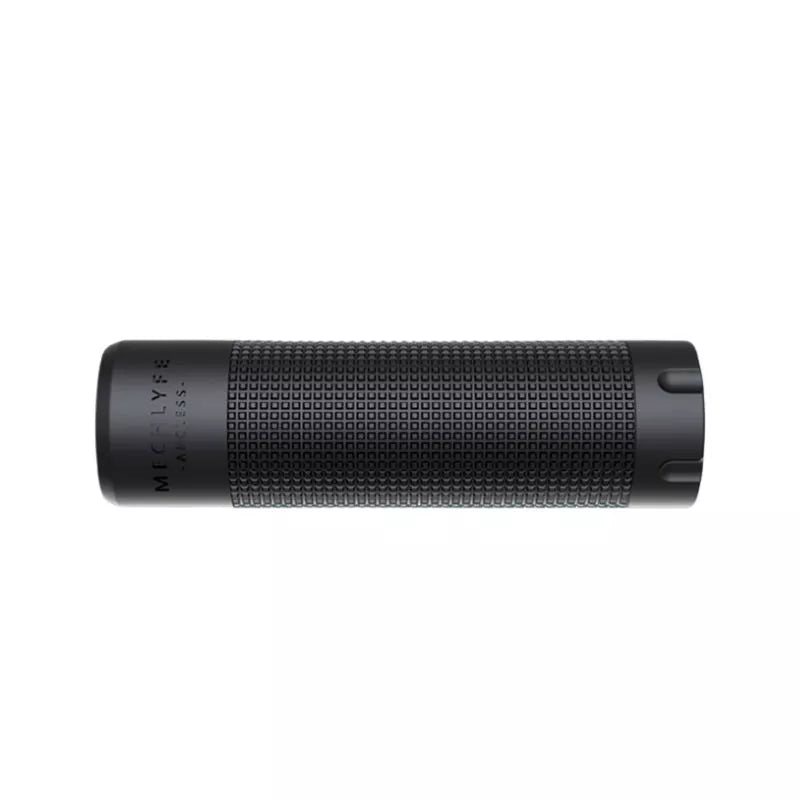

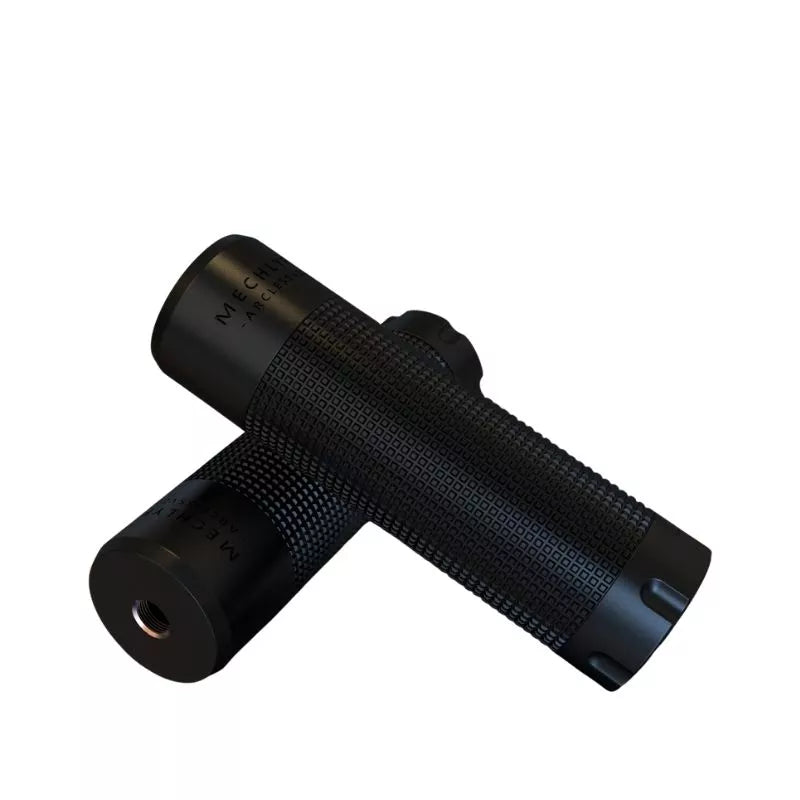

Arcless Mech Mod V2.0 Copper Edition

The Arcless Mech Mod V2.0 Copper Edition from Mechvape is the upgraded 2026 version of the original Arcless, bringing improved performance and refined build quality to this iconic mechanical mod. Built entirely from copper with electroplated frosted black finish, the Arcless V2.0 delivers exceptional conductivity with a striking appearance. The name says it all - this vape mod eliminates arcing through silver-plated copper constant contact and self-adjusting battery pins, giving you clean power delivery with every hit.

At 91mm tall with a 27mm tube diameter and 25mm top cap, the Arcless V2.0 fits 18650, 20700, and 21700 batteries with included adapters. The knurled black sleeve provides solid grip, while the CD pattern black metal button adds style. Compatible with Arcless Resin Sleeves for full customisation.

Voltage drop tested at just 0.43V with a Samsung 30T battery, this copper mech mod delivers hard-hitting performance. Features a hybrid 510 connection with internal all-around insulation protection for experienced mech users.

Arcless Mech Mod V2.0 Key Features

• Full Copper Construction
• Electroplated Frosted Black Finish
• No Arcing Design
• Silver-Plated Copper Constant Contact
• Self-Adjusting Battery Contact
• 0.43V Voltage Drop (Samsung 30T Test)
• Compatible with 18650, 20700, 21700 Batteries
• Hybrid 510 Connection
• Internal All-Around Insulation Protection
• Knurled Black Sleeve for Grip
• CD Pattern Black Metal Button
• 27mm Tube Diameter
• 25mm Top Cap Diameter
• 91mm Overall Height
• Compatible with Arcless Resin Sleeves
• V2.0 Upgraded 2026 Version
• For Experienced Mech Users Only

No Arcing Technology

The Arcless V2.0 lives up to its name by eliminating electrical arcing between contact points. Silver-plated copper constant contact combined with self-adjusting battery pins keeps consistent connection without sparking or power loss. This means cleaner hits, less wear on your batteries, and better long-term performance. The contact points stay smooth and responsive even after extended use, giving you reliable power delivery every time you fire.

Full Copper Construction

Built entirely from copper, the Arcless V2.0 delivers superior conductivity for fast ramp-up and hard-hitting performance. Copper offers the best electrical properties of any mech mod material, transferring power from battery to atomiser with minimal resistance. The electroplated frosted black finish protects the copper while giving the mod a sleek, tactical appearance. Over time, the copper develops a natural patina underneath that mech enthusiasts appreciate.

Hybrid 510 Connection

The Arcless V2.0 uses a hybrid 510 connection where your atomiser makes direct contact with the battery positive terminal. This eliminates an extra contact point for better conductivity and lower voltage drop. Internal all-around insulation protection keeps everything safe, but hybrid connections require proper atomiser pin length - only use atomisers with protruding 510 pins. This setup is for experienced mech users who understand hybrid safety requirements.

Multi-Battery Compatibility

Run 18650, 20700, or 21700 batteries in the Arcless V2.0 with the included 18650 adapter. The 27mm tube diameter accommodates larger cells without making the mod bulky. Self-adjusting battery contact automatically adapts to different battery lengths, so you get solid connection whether you're running high-drain 18650s or long-lasting 21700s. Swap between battery sizes depending on your vaping style and power needs.

Low Voltage Drop Performance

Voltage drop tested at just 0.43V using a Samsung 30T battery, the Arcless V2.0 delivers efficient power transfer. Lower voltage drop means more of your battery's power reaches the coil, giving you hotter, faster ramp-up and bigger clouds. The combination of copper construction, silver-plated contacts, and constant contact design keeps resistance minimal throughout the entire electrical path.

Knurled Black Sleeve Design

The knurled black sleeve wraps around the copper tube, providing secure grip and protecting the finish. The textured pattern stops the mod slipping in your hand during use. Combined with the CD pattern black metal fire button, the Arcless V2.0 has a tactical, industrial look that stands out from polished mech mods. The sleeve is also compatible with Arcless Resin Sleeves if you want to customise your setup with different colours and patterns.

Specifications

• Material: Full Copper Construction
• Finish: Electroplated Frosted Black
• Overall Height: 91mm
• Tube Diameter: 27mm
• Top Cap Diameter: 25mm
• Connection: Hybrid 510
• Battery Compatibility: 18650, 20700, 21700
• Voltage Drop: 0.43V (Samsung 30T)
• Contact: Silver-Plated Copper Constant Contact
• Button: CD Pattern Black Metal
• Sleeve: Knurled Black
• Insulation: Internal All-Around Protection
• Version: V2.0 (2026 Upgraded)
• Compatible: Arcless Resin Sleeves

Why Choose the Arcless Mech Mod V2.0 Copper Edition?

The Arcless V2.0 is built for mech users who want maximum performance from copper construction without the maintenance headaches of arcing and contact wear. The no-arcing design with silver-plated constant contact keeps power delivery clean and consistent. At 0.43V voltage drop, you're getting efficient power transfer that translates to harder hits and better flavour. Compatible with Arcless Resin Sleeves for full personalisation. This is the upgraded 2026 version with refined build quality over the original Arcless.

What's in the Box?

• 1 x Arcless Mech Mod V2.0
• 1 x Extra Fire Pin
• 1 x 18650 Battery Adapter
• 2 x Springs
• 1 x Delrin Insulation Screw
